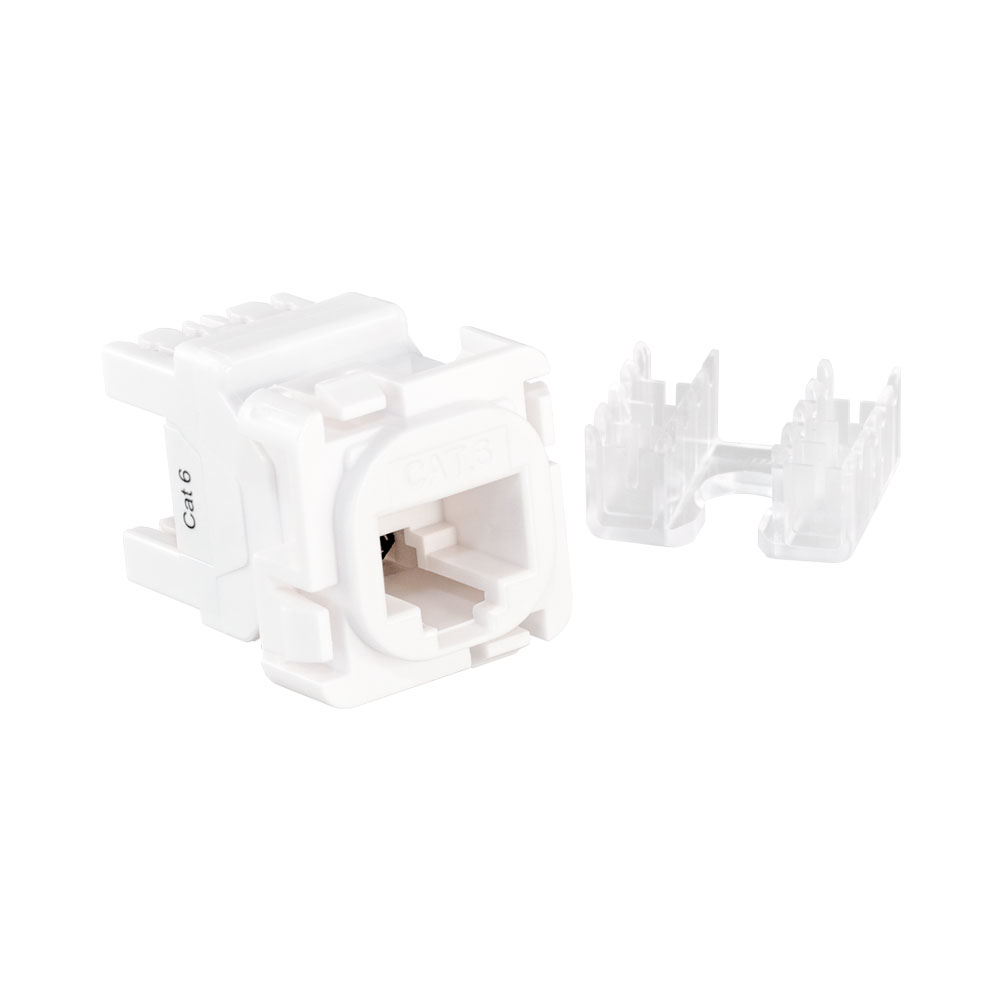

FEATURES
• Available in CAT6: T568A/B Wiring, Meets or Exceeds TIA/EIA CAT6 Requirements
• Housing: High-Temperature Thermoplastic
• Compact Jack Design: 8× Positions and 8× Conductors
• Contact: Phosphor Bronze or Phosphor Bronze with 6~50μ Gold Plating
• Cable Compatibility: Accepts 22~26 AWG Solid Cable with 0.4~0.6mm Insulation Diameter
• Easy Termination: Low Attenuation Loss and High Return Loss
• High Reliability and Superior Performance
SPECIFICATIONS
• Contact Resistance (Max.): 100mΩ
• Insulation Resistance (Min.): 500MΩ
• Return Loss (dB): 5.2dB
