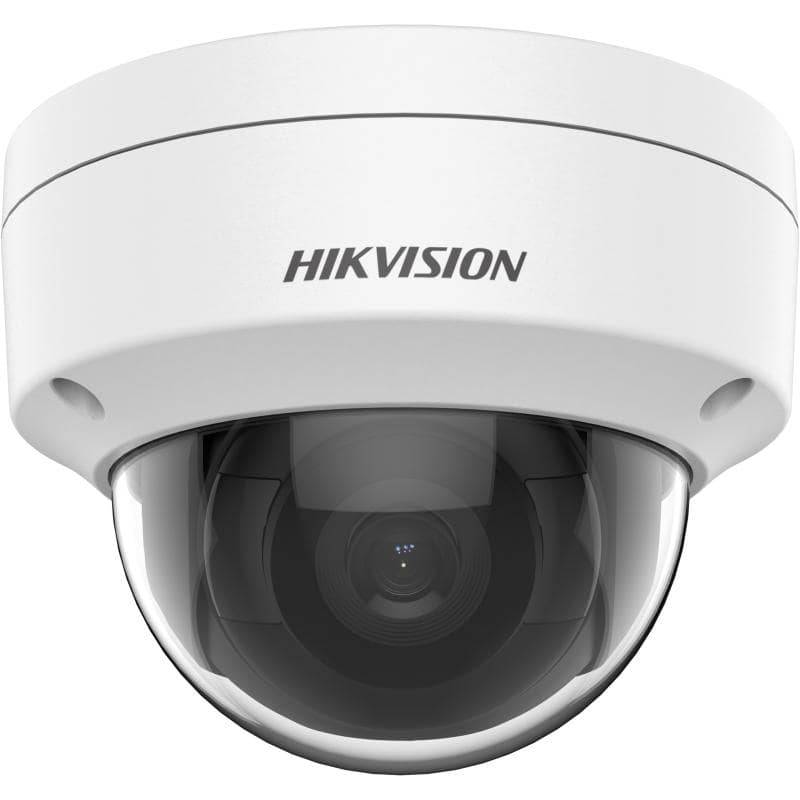

Hikvision 2MP Fixed Dome Network Camera – High Quality Imaging With 2 MP Resolution, Efficient H.265+ Compression Technology, Clear Imaging Against Strong Back Light Due to DWDR Technology, Water and Dust Resistant (IP67) and Vandal Resistant (IK10), EXIR 2.0: Advanced Infrared Technology With Long IR Range
Product Overview
Hikvision 2MP IR Dome Network Camera 1/2.7″ CMOS sensor delivers 1920×1080 at 25/30fps with H.265+/H.264+ compression, 0.01Lux low-light color, 30m IR night vision, and 112°/90° FOV (2.8/4mm fixed lens). IP67/IK10 rated metal/plastic dome (Ø110×82.4mm, 410g) with WDR, motion detection, pan/tilt adjustment (355°/75°), RJ45 PoE (802.3af), and ROI support. Multi-protocol network (up to 6 channels), 12VDC/5W power, -30~60°C operation—ideal for reliable 24/7 security in homes, offices, or businesses.
Features
•High quality imaging with 2 MP resolution
•Efficient H.265+ compression technology
•Clear imaging against strong back light due to DWDR technology
•Water and dust resistant (IP67) and vandal resistant (IK10)
•EXIR 2.0: advanced infrared technology with long IR range
Specifications
•Product Code: DS-2CD1123G0E-I2.8MM
•Description: Hikvision 2 MP Fixed Dome Network Camera
•Image Sensor: 1/2.7″ Progressive Scan CMOS
•Max. Resolution: 1920 × 1080
•Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
•Shutter Time: 1/3 s to 1/100, 000 s
•Day & Night: IR cut filter
•Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length & FOV
•2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
•4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
•Lens Mount: M12
•Focus: Fixed
•Aperture: F2.0
Illuminator
•Supplement Light Type: IR
•Supplement Light Range: Up to 30 m
•IR Wavelength: 850 nm
Video
Main Stream
•50 Hz: 25 fps (1920 × 1080, 1280 × 720)
•60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
•50 Hz: 25 fps (640 × 480, 640 × 360)
•60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
•Main Stream: H.265/H.264/H.264+/H.265+
•Sub-Stream: H.265/H.264/MJPEG
•Video Bit Rate: 32 Kbps to 8 Mbps
•H.264 Type: Baseline Profile/Main Profile/High Profile
•H.265 Type: Main Profile
•Region of Interest (ROI): 1 fixed region for main stream
Networ
•Simultaneous Live View: Up to 6 channels
•API: Open Network Video Interface, ISAPI
•User/Host: Up to 32 users. 3 levels: administrator, operator and user
•Client: iVMS-4200, Hik-Connect
Web Browser
•Plug-in required live view: IE 10+
•Plug-in free live view: Chrome 57.0+, Firefox 52.0+
•Local service: Chrome 57.0+, Firefox 52.0+
•Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
•Day/Night Switch: Day, Night, Auto, Schedule
•Wide Dynamic Range (WDR): Digital WDR
•Image Enhancement: BLC, 3D DNR
Interface
•Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General
Power
•12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
•PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
•Material: Metal & Plastic
•Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
•Approx. 410 g (0.9 lb.)
•With Package Weight: Approx. 610 g (1.3 lb.)
•Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
•Language: English, Ukrainian
•General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
