Hikvision 8 Channel 720p DIY Kit – surveillance kit with 8 Hikvision 720p IR Bullet Cameras (DS-2CE16D0T-EXIPF, 2.8mm lens) and 8-channel DVR (DS-7108HGHI-F1). Supports H.265 and H.264 video compression, HDTVI/AHD/CVI/CVBS/IP input (up to 5MP IP cameras). Video output HDMI and VGA up to 1080p@60Hz. Maximum 1200m cable length for 720p HDTVI. Storage: 1 SATA (up to 4TB). Network support RJ45 Ethernet with Hik-Connect and DDNS. Features advanced motion detection with human and vehicle classification. Power supply 12VDC, operating temp -10°C to 55°C, size 200x200x45mm, weight under 1kg (without HDD). Includes 20m BNC coax cables for installation. Ideal for home/business security.
Product Overview

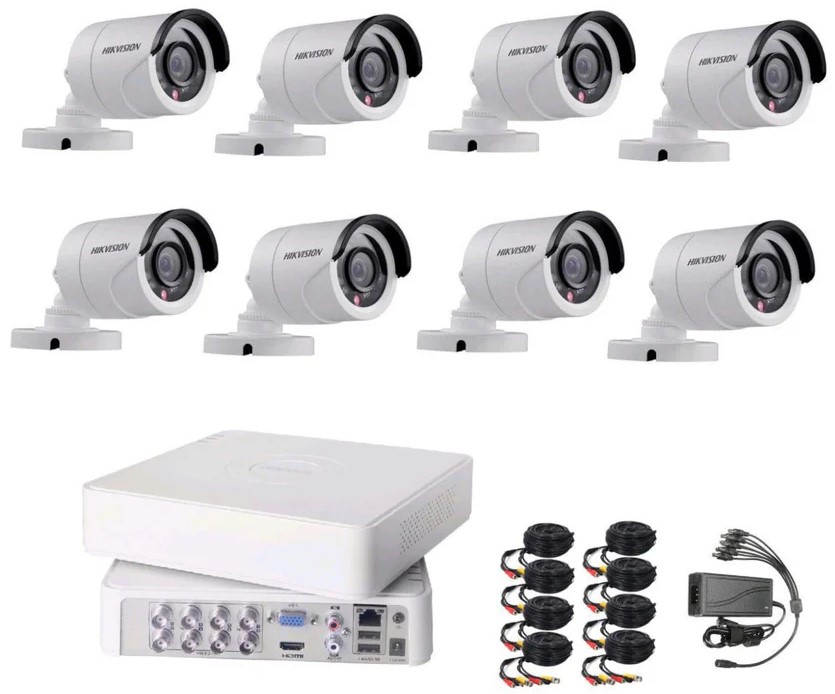

The Hikvision 8 Channel 720p DIY Kit Complete Installation Kit offers a reliable and easy-to-install surveillance solution ideal for homes and small businesses. The kit includes an 8-channel DVR (DS-7108HGHI-F1) and eight 720p IR bullet cameras that provide clear video footage day and night. It comes with all necessary accessories such as 20m BNC coaxial/power cables and a power supply, allowing straightforward setup.This kit supports comprehensive security coverage with user-friendly operation and features like remote viewing through mobile apps. It provides dependable video quality, making it a practical choice for those seeking effective video surveillance with a balanced combination of clarity, coverage, and ease of installation.
Specifications
– Product Code : HIK8CHKIT
– Product Overview : Hikvision 8 Channel 720p DIY Kit Complete Installation Kit
– Camera Count: 8 x Hikvision 720p IR Bullet Cameras (model DS-2CE16D0T-EXIPF, 2.8mm lens)
– DVR Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 formats
– Video Input: HDTVI / AHD / CVI / CVBS / IP compatible (up to 10-ch IP input, up to 5 MP resolution)
– Analog Video Input: 8-channel BNC interface, supporting coaxitron connection
– Audio Input: 1-ch RCA, 8-ch audio via coax
– Audio Compression: G.711u
– HDMI Output: 1 channel, up to 1920 x 1080 @ 60Hz
– VGA Output: 1 channel, up to 1920 x 1080 @ 60Hz
– Recording Resolution: up to 1080p Lite @ 30fps
– Max Cable Length: 1200 meters for 720p HDTVI signal
– Storage: 1 x SATA interface (supports up to 4TB HDD capacity)
– Network: RJ45 Ethernet 10/100 Mbps, supports Hik-Connect and DDNS
– Motion Detection: Deep learning based Human and Vehicle target classification Motion Detection 2.0
– Bandwidth: 72 Mbps total
– Power Supply: 12 VDC, 1.5 A
– Operating Conditions: Temperature -10°C to 55°C, Humidity 10% to 90%
– Size: 200 x 200 x 45 mm (DVR)
– Weight: ≤ 1 kg (without HDD)
