FEATURES

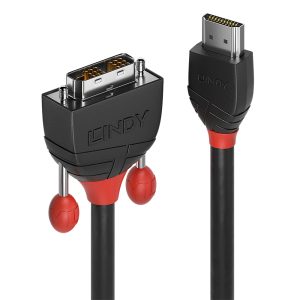

• Entry level HDMI Male to DVI-D Male cable for home and small office applications
• Supports DVI resolutions up to 1920×1200 @60Hz and HDTV resolutions up to 1080p
• Robust PVC housing, nickel connectors, 24K gold plated contacts
• Tripled shielded cable, corrosion resistant tinned copper 30AWG conductors
• 10 year warranty
CONNECTORS
• Connector A: HDMI Type A Male
• Connector B: DVI-D Male (Single Link)
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: 24K Gold 1?m
• Dimensions (approx.) WxDxH:
• HDMI: 2×34.2×12.7mm (0.84×1.35×0.5in)
• DVI: 36.8×44.5×12.5mm (5×1.75×0.49in)
CABLE CONSTRUCTION
• Length: 2m
• Standard: DVI-D Single Link
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminium/Magnesium Braid 85%
SPECIFICATIONS
• Supported Bandwidth: 4.95 Gbps
• Maximum Resolution: 1920×1200@60Hz
• Nominal Attenuation: 1 – 825Mhz < 12db
• Minimum Bend Radius: 55mm
• Operating Temperature: -20°C - 80°C
• Storage Temperature: -25°C - 85°C
