FEATURES

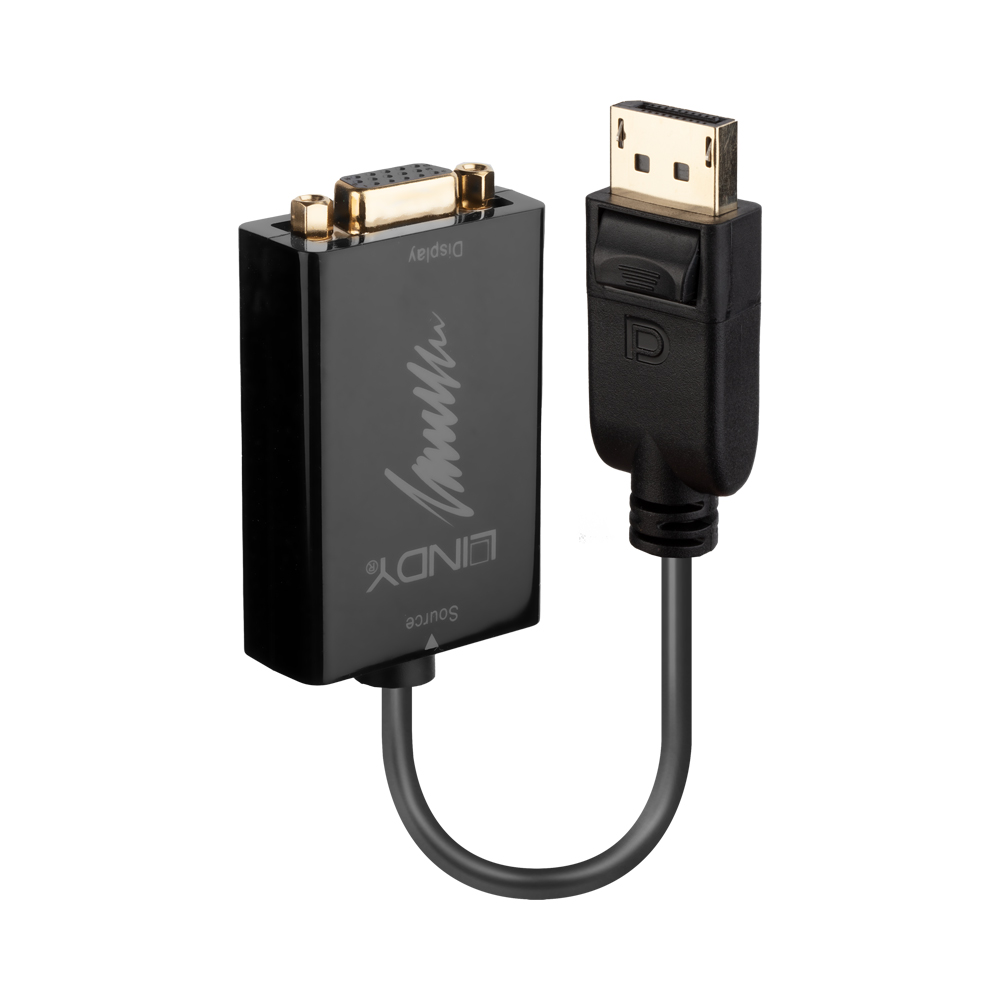

• Converts a DisplayPort signal into VGA
• Supports resolutions up to 1920×1080 @60Hz
• Add a VGA monitor as a secondary display
• Quick and simple Plug & Play installation
SPECIFICATIONS
• AV Interface: DisplayPort to VGA
• Interface Standard: DisplayPort 1.2, VGA
• Supported Bandwidth: 10.8Gbps
• Maximum Input Resolution: 1920×1080@60Hz
• Maximum Output Resolution: 1920×1080@60Hz
• Chipset: ANX9833
TECHNICAL INFORMATION
• Connectors: Input: DisplayPort Male, • Output:VGA Female
PHYSICAL INFORMATION
• Dimensions (approx.) WxDxH: 38x61x17mm, 20x36x11mm /DP
• Cable Length: 150mm
• Housing Material: TPE
• Jacket Material: PVC
• Jacket Diameter: 6.5mm
• Minimum Bend Radius: 70mm
• Net Weight: 0.045kg
• Operating Temperature: -20°C – 80°C
• Storage Temperature: -20°C – 70°C
• Humidity: 20 – 90% RH (non-condensing)
• Colour: Black
