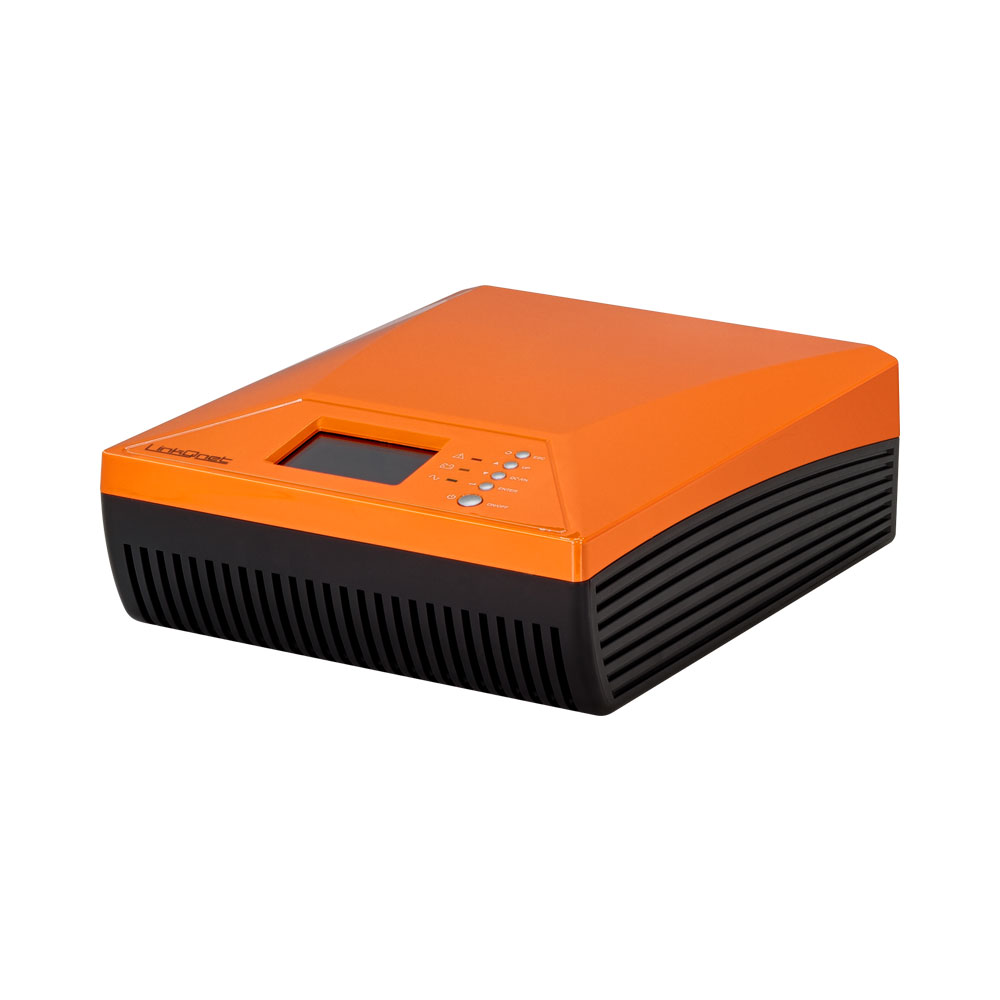

FEATURES
• 2kVA 1600W Power Output – Delivers stable 230V AC power for essential loads
• Integrated Solar Charge Controller – Built-in 50A SCC for efficient solar charging
• Pure Sinewave Output – Safe for sensitive electronics and IT equipment
• 24V DC Battery System – Requires 2× 12V batteries for simple setup
• Compact and Efficient Design – Ideal for space-conscious installations
• Reliable Backup Power Solution – Suitable for residential and light commercial use
SPECIFICATIONS
General
• Capacity: 2000VA / 1600W
• Nominal Battery Voltage: 24V DC
AC Input (Line Mode)
• Nominal Input Voltage: 230V AC
• Voltage Range (Narrow): 170~280V AC
• Voltage Range (Wide): 90~280V AC
• Input Frequency: 50Hz / 60Hz (Auto Detection)
AC Output (Line Mode)
• Output Voltage: 230V AC
• Frequency / Waveform: Following Utility Supply
Transfer Time
• Typical Transfer Time: 20ms
AC Output (Backup Mode)
• Output Voltage: 230V AC (+10% / −18%)
• Output Frequency: 50Hz / 60Hz (Auto Detection)
• Waveform: Simulated Sinewave
Protection Features
• Battery Over-Discharge Protection
• Battery Over-Charge Protection
• Over-Load Protection
• Over-Temperature Protection
• Short-Circuit Protection
Battery Charger (AC Charging)
• Charging Algorithm: 3-Step Charging
• AC Charging Current: 10A / 20A Selectable
• Floating Charging Voltage: 27.5V ±0.50V
• Over-Charging Voltage: 30.6V
Solar Battery Charger (PWM)
• Maximum PV Input Power: 1200W
• Charging Current (PWM): 50A
• System DC Voltage: 24V DC
• Optimal PV Working Voltage Range: 30~32V
• Maximum PV Input Voltage: 60V
• Maximum PV Input Current: 50A
Physical
• Dimensions (D × W × H): 316 × 227 × 92mm
• Net Weight: 3.3kg
Environmental
• Operating Temperature: 0~50°C
• Operating Humidity: 0~90% RH (Non-Condensing)
• Storage Temperature: −15~55°C
• Storage Humidity: 0~90% RH (Non-Condensing)
• Noise Level: <50dB
