FEATURES

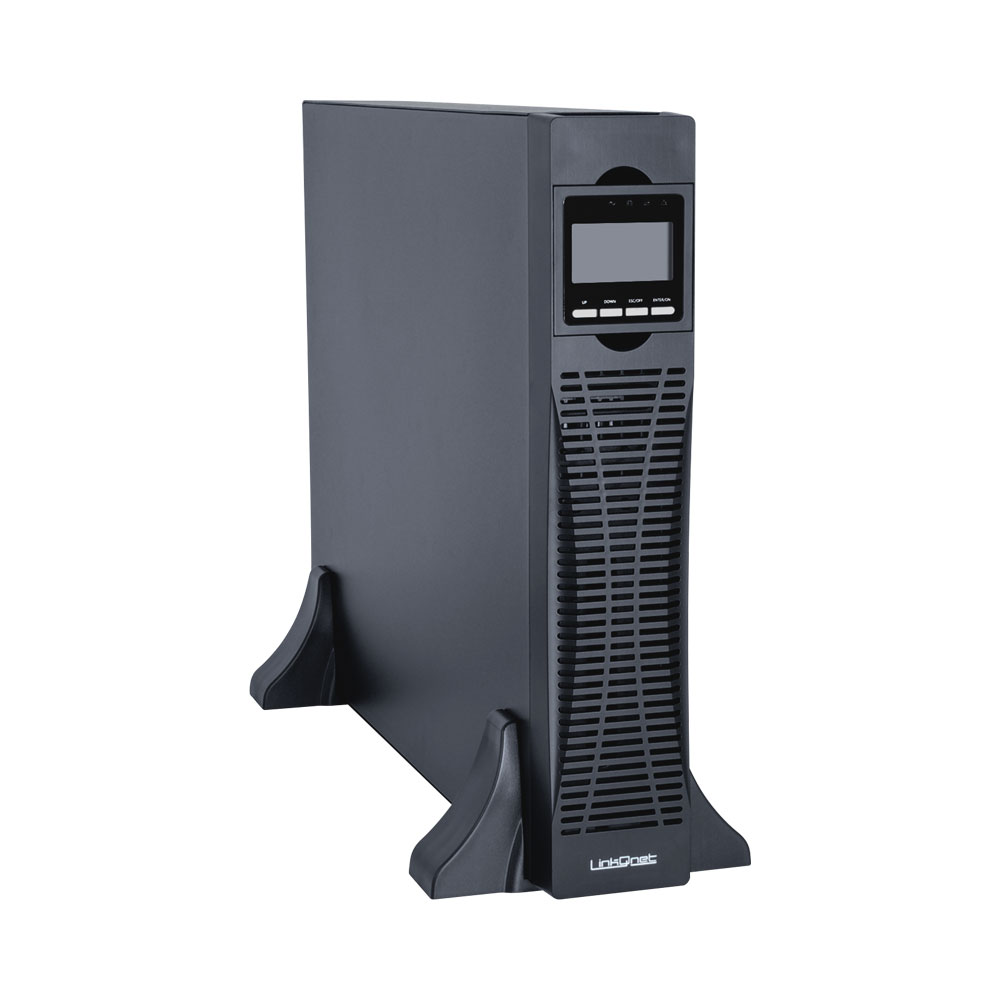

• Rack and Tower Convertible LCD Design – Flexible installation with clear status monitoring

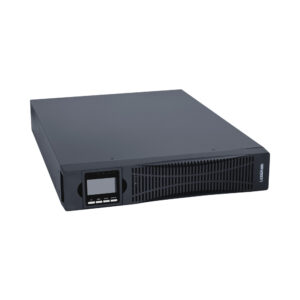

• 2U Rackmount Form Factor – High power density for efficient use of standard 19″ racks
• Online Double-Conversion Topology – Full digital control for continuous clean power output
• Wide Input Voltage Range – Operates from 110~286Vac for improved utility tolerance
• Generator Compatible Operation – Stable performance when powered by generators
• ECO Mode Functionality – Energy-saving operation to improve overall efficiency
• Comprehensive Communication Interfaces – RS232, USB and EPO for monitoring and control
• Cold Start Capability – Allows UPS startup without utility power
• Intelligent Fan Speed Control – Automatically adjusts cooling for quieter operation and longer fan life
• Advanced Protection Systems – Safeguards against short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage and fan fault conditions
• Battery-Ready Design – Requires external batteries for flexible runtime configuration
• Enterprise-Grade Reliability – Built for data centres and critical IT environments
SPECIFICATIONS
Capacity
• Rated Power: 10,000VA / 9,000W
Input
• Nominal Voltage: 208 / 220 / 230 / 240Vac
• Input Voltage Range: 110~286Vac
• Power Factor: ≥0.99
• Bypass Voltage Range: Max. Voltage 220V +25% (Optional +10%, +15%, +20%), 230V +20% (Optional +10%, +15%), 240V +15% (Optional +10%), Min. Voltage: –45% (Optional –20%, –30%)
Battery
• Battery Type: VRLA
• Charging Current: 1A (Standard) / 10A (High)
Frequency
• Frequency Range: 40~70Hz
Output
• Output Voltage: 208 / 220 / 230 / 240Vac
• Output Power Factor: ≥0.99
• Output Frequency: Line Mode: ±1% / ±2% / ±4% / ±5% / ±10% (Optional), Battery Mode: 50Hz / 60Hz
• Crest Factor: 3:1
• Output Waveform: Pure Sinewave
• Harmonic Distortion (THDv): ≤2% (Linear Load), ≤5% (Non-Linear Load)
Transfer Time
• AC Mode to Battery Mode: 0ms
• Inverter to Bypass: 0ms
Overload Capability
• Line Mode: ≤110% load for 60 minutes, ≤125% load for 10 minutes, ≤150% load for 200ms, 150% Immediate Transfer to Bypass
• Bypass Mode: 63A (Breaker)
Efficiency
• Operating Efficiency: ≥92%
Standards and Protection
• Safety Standard: IEC / EN 62040-1
• EMI: IEC / EN 62040-2
• EMS: IEC / EN 62040-2
• Ingress Protection: IP20
