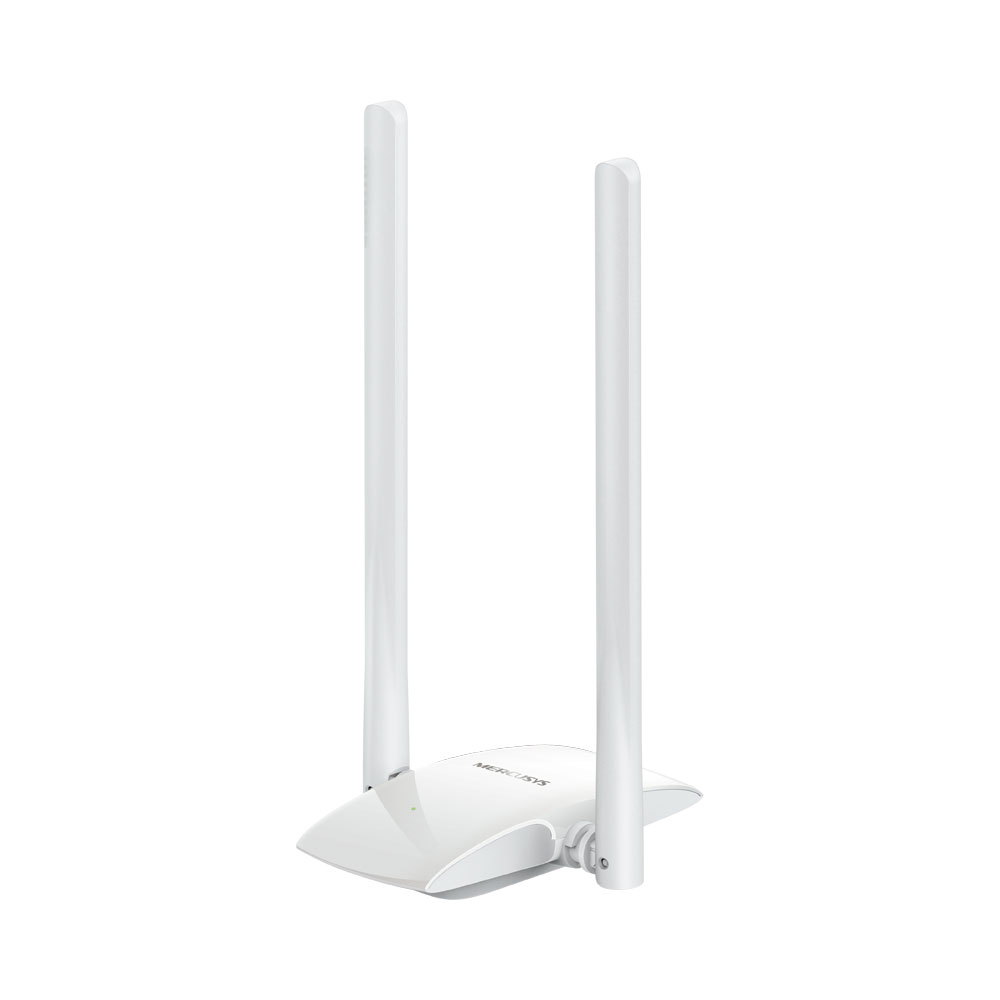

FEATURES
• 300Mbps Wireless Speed – Enjoy stable Wi-Fi performance for everyday internet activities such as browsing, streaming, and video calls
• 5dBi High-Gain Antenna – External antenna significantly improves signal reception and transmission for stronger connectivity
• Adjustable Multi-Directional Antenna – Easily rotate and position the antenna for the best wireless signal
• Flexible USB Extension Cable – Allows convenient placement of the adapter to achieve optimal reception
• Enhanced Wireless Security – Supports WPA/WPA2 encryption to protect your network from unauthorised access
• Easy Setup for Windows – Quick installation with driver support for Windows operating systems
SPECIFICATIONS
ANTENNA TYPE
• External
DIMENSIONS (W × D × H)
• 113.2 × 63.8 × 21.7mm (Without Antennas)
• 113.2 × 100.5 × 201.1mm (With Vertical Antennas)
WIRELESS STANDARDS
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
FREQUENCY
• 2.400~2.4835GHz
SIGNAL RATE
• 11n: up to 300Mbps (Dynamic)
• 11g: up to 54Mbps (Dynamic)
• 11b: up to 11Mbps (Dynamic)
RECEPTION SENSITIVITY
• 300M: -68dBm @10% PER
• 270M: -68dBm @10% PER
• 144M: -71dBm @10% PER
• 130M: -71dBm @10% PER
• 54M: -74dBm @10% PER
• 11M: -86dBm @8% PER
• 6M: -90dBm @10% PER
• 1M: -94dBm @8% PER
TRANSMISSION POWER
• ≤20dBm (EIRP)
WIRELESS SECURITY
• WEP
• WPA/WPA2
• WPA-PSK/WPA2-PSK
INTERFACE
• Micro USB2.0
CERTIFICATIONS
• CE
• RoHS
ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing
SYSTEM REQUIREMENTS
• Windows 10 / 8.1 / 8 / 7 / XP (32/64bit)
