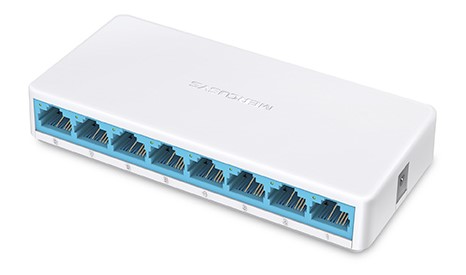

Mercusys MS108 8-Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty
Product Overview
Expand your wired network effortlessly with the Mercusys MS108 8-Port 10/100Mbps Desktop Switch, featuring auto-negotiation RJ45 ports for seamless connectivity. Its compact design allows for flexible placement, while plug-and-play setup ensures hassle-free installation without any configuration needed.
Features
•Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
•Easily wired network expansion
•Compact design for flexible arrangement
•Plug and play setup, no configuration required
Specifications
•Product code: MS108
•Description: Mercusys MS108 8-Port 10/100Mbps Desktop Switch
•Software Transfer: Method Store
•Dimensions (W X D X H) 127 x 60.3 x 22 mm
•Interfaces 8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX External
•Power Supply External power adapter
•(Output: 5.0VDC / 0.6A)
•Standards and Protocols
•IEEE 802.3, IEEE 802.3u, IEEE 802.3x
•CSMA/CD
•Fan Quantity Fanless
•Data Rates: 10/100Mbps at half duplex
•20/200Mbps at full duplex Buffer Capacity 768Kb Jumbo Frame 2KB Switching Capacity 1.6Gbps LED Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
•OthersCertifications CE, RoHS Package Contents
•8-Port 10/100Mbps Desktop Switch
•MS108
•Quick installation guide Environment
•Operating temperature: 0°C~40°C (32°F~104°F)
•Storage temperature: -40°C~70°C (-40°F~158°F)
•Operating humidity: 10% ~ 90% non-condensing
•Storage humidity: 5%~90% non-condensing
