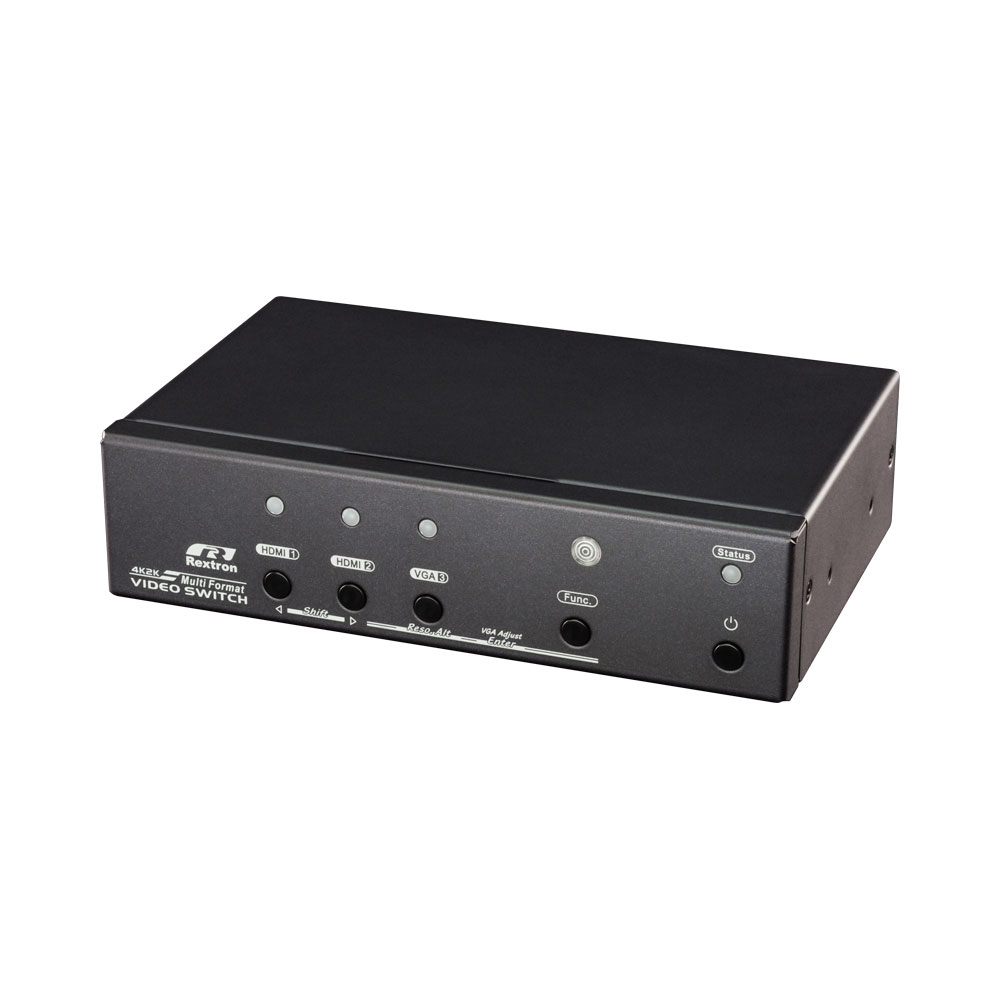

FEATURES
• 3-to-1 Video Switching – Selects one video signal with embedded audio from four different input sources
• Auto-Sensing Source Detection – Automatically switches to the latest active video source
• Priority Switching Function – Allows a preferred input type to take priority when multiple sources are connected
• Selectable Input Sequence – Customise the order in which input sources are switched
• Wide Resolution Support – Supports up to 3840×2160, 2560×1600 and Full HD 1920×1080 with broad display compatibility
• Multiple Control Methods – Supports front panel, push buttons, IR remote, serial simple-control and serial GUI operation
• HDCP Compliant – Supports protected content with 3D video and Blu-ray compatibility
• External IR Receiver Support – Enables flexible remote control placement for custom installations
SPECIFICATIONS
• Input: 2× HDMI, 1× VGA and Audio
• Output: 1× HDMI
• LED Indicators (Power/Status): 3× Source, 1× Status
• Push Buttons: 3× Port Selection, 1× Function, 1× Power
• IR Control: 1× 3.5mm Jack
• Serial Configuration: 1× RJ12
• Mode Configuration: Switch / Auto / Pri-A / Pri-B
• Video Resolution (Max.): 3840×2160 HDMI, Full HD 1920×1080 VGA
• Enclosure: Metal
• Power Consumption: Max. 550mA @12V
• Dimensions (H x W x D): 40 × 160 × 100mm
• Weight: 610g
