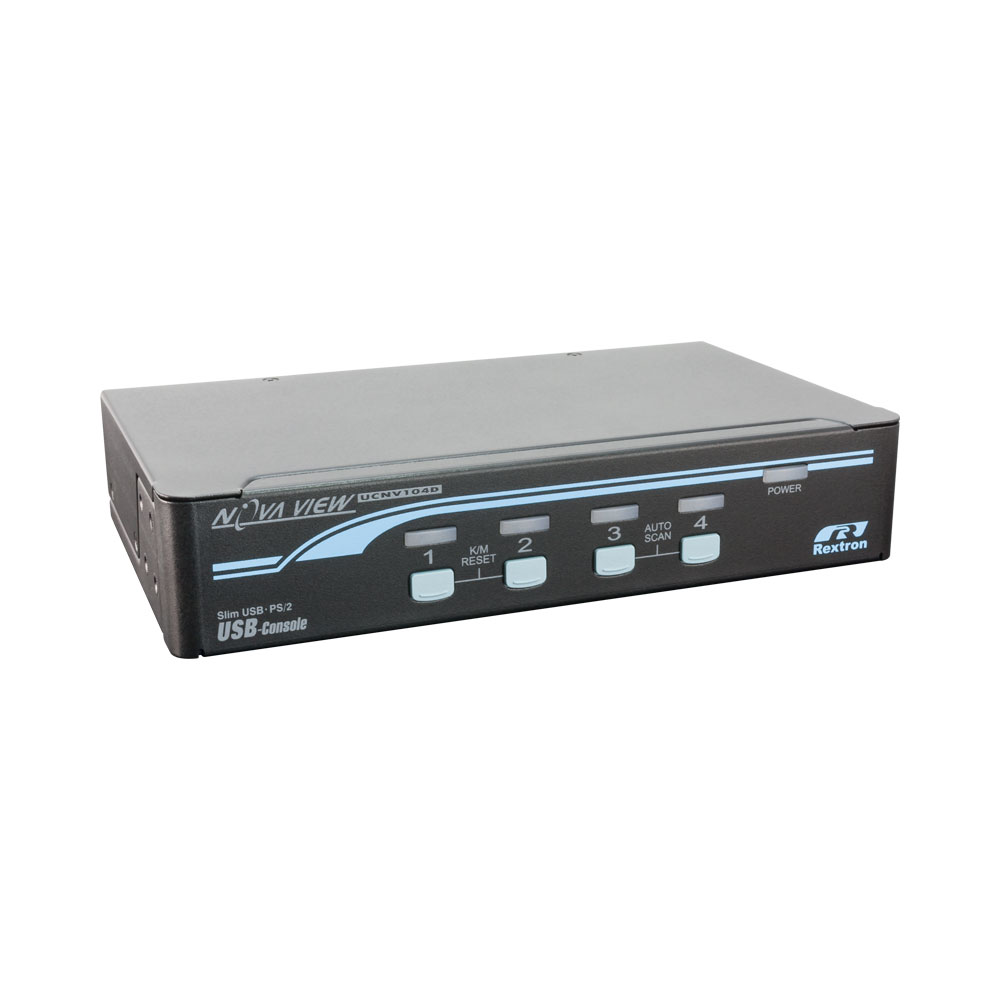

FEATURES
• Compact, 1U Design – Space-saving form factor ideal for dense rack installations
• Secure Dedicated Cabling – Uses unique cables for reliable and protected connections
• Auto-Scan Function – Automatically cycles through connected computers sequentially
• Custom Computer Naming – Assigns meaningful names to each connected system
• Name-Based Computer Selection – Quickly identify and select computers by name
• Programmable Scan Filters – Skips unused computers during auto-scan operation
• Nonvolatile Memory Storage – Retains system settings and name entries after power loss
• Password Security Protection – Prevents unauthorised access to connected computers
• User-Friendly OSD Interface – Provides complete control through an easy, on-screen display
• Hotkey Switching Support – Enables fast keyboard-based computer access
• OS-Independent Operation – Transparent to operating systems and applications
• Plug-and-Play Configuration – No software or drivers required
• High Resolution Support – Supports VGA resolutions up to 1920×1440
• DDC2B Compatibility – Ensures accurate monitor communication
• SUN Keyboard Emulation – Supports SUN keyboard environments for broader compatibility
SPECIFICATIONS
• Control Buttons on Front Panel: 4×
• Applicable Computers: USB PC, USB Sun, USB Mac
• On-Screen Display (OSD): Yes
• Plug-and-Play: Yes
• Hotkey Control: Yes
• Computer Name Entry: 14-Characters
• Auto-Scan Interval: 3, 8, 15, 30 Seconds
• Programmable Scan Pattern: Yes
• Security Control: 4-Character Password per Computer
• Cable Type: 1-to-2 USB Cable, Max. 5m
• Video Resolution: 1920×1440, DDC2B
• Computer Connectors: 4× VGA (Grey) + USB Interface
• Console Connectors: 1× USB Mouse, 1× USB Keyboard, 1× VGA Monitor Female
• Power Consumption (Max.): 9V DC, 500mA
• Dimensions (H × W × D): 44 × 220 × 130mm
