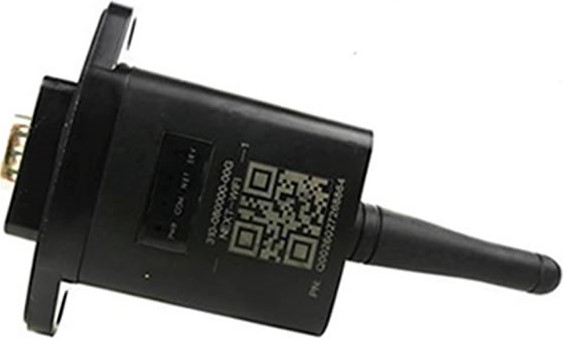

Solarix Wifi Module For Solarix Sun Inverters- Wifi Protocol 802.11 b/g/n, WEP, WPA/WPA2 Encryption, Wifi Frequency: 2.4GHz, Wireless Gain: 2.5dBi, Wifi Distance: Up 30 meters (open space), RS232 Communication Interface, Downloadable APP Available For Both IOS And Android Based Devices, Unit Is Designed To Work With The Solarix Sun 6.5KVA Inverters, Colour Black, Retail Box, 1 Year Limited Warranty
Product Overview
The Solarix Wifi Module For Solarix Sun Inverters enable wireless communication between the Solarix inverters and the monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining WiFi module with the downloadable APP that is available for both iOS and Android based devices for up to 30 metres. Unit is designed to work with the Solarix Sun 6.5KVA Inverters. User Leaflet Is Included In The Box
Specifications
• Stock Code SOLWIFIDG01
• Description Solarix Wifi Module For Solarix Sun Inverters
• RS232 Communication Interface
• Designed To Work With The Solarix Sun 6.5KVA Inverters
• Wifi Protocol 802.11 b/g/n
• WEP, WPA/WPA2 Encryption
• Wifi Frequency: 2.4GHz
• Wireless Gain: 2.5dBi
• Wifi Distance: Up 30 meters (open space)
• External Power Input: 5V-12V
• Power Consumption: 2 watt (max.)
• User Leaflet Is Included In The Box
• Operating Temperature: -20°C ~ 75°C
• Operating Humidity: 0 ~ 95%
• Storage Temperature: -30°C ~ 80°C
• Dimension, D x W x H (mm): 28 x 46 x 172
• Net Weight (g): 120
