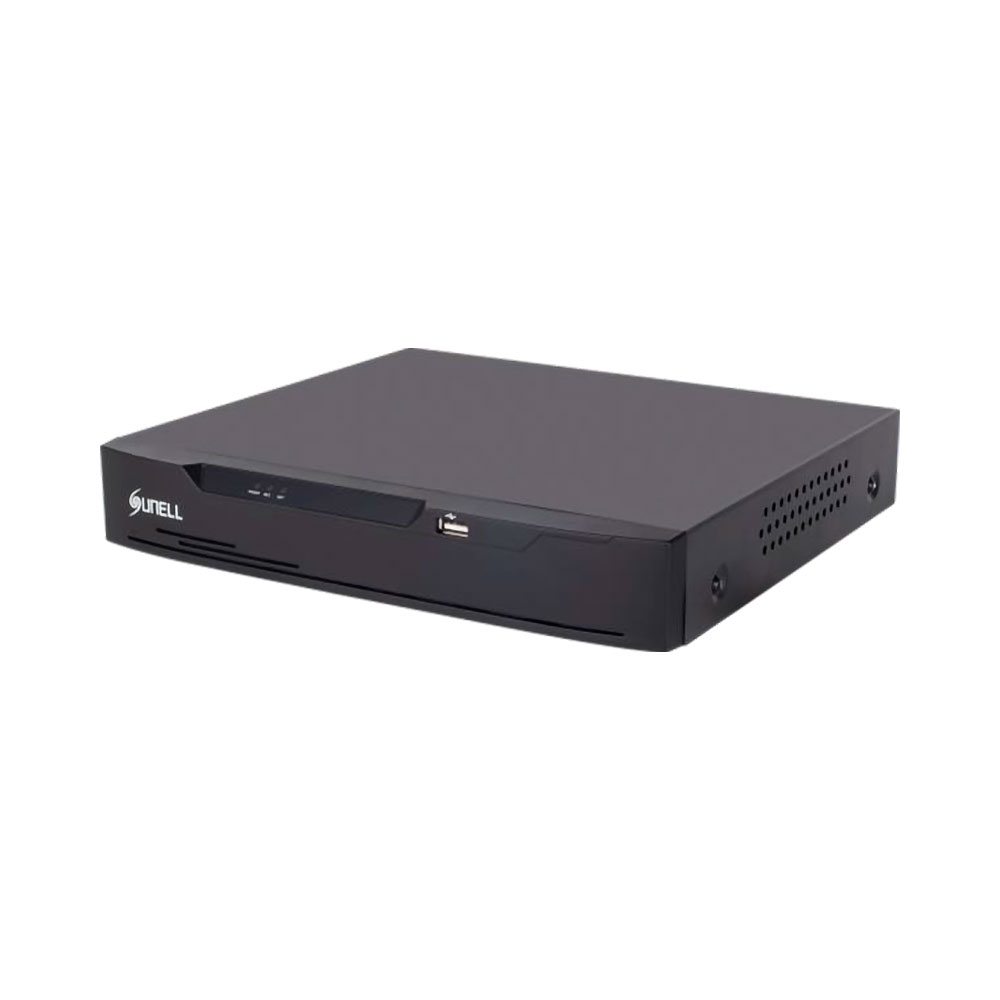

FEATURES
• Supports AHD/TVI/CVI/CVBS/IP video inputs
• VGA, HDMI video output up to 4K
• Smart search / playback
• Response Time ≤0.2s
• Easy to use same Interface of GUI/WEB/Client
• Support more than languages
• Perfect protection circuit, unique triple watchdog function
SPECIFICATIONS
System
• Main Processor: Embedded processor
• Operating System: Embedded LINUX
Video and Audio
• Analogue Camera Input: 4ch BNC
• AHD Camera: 5MP/4MP/3MP/1080p/720p @25/30fps
• TVI Camera: 5MP/4MP/3MP/1080p/720p @25/30fps
• CVI Camera: 5MP/4MP/3MP/1080p/720p @25/30fps
• CVBS Camera: PAL/NTSC
• IP Camera Input: 4+2ch, each channel up to 1080p
• Audio In/Out: 1ch input, 1ch output, RCA
• Two-way Talk: Support
Display
• Interface: 1 HDMI, 1 VGA, 1 CVBS
• Resolution: HDMI: 3840×2160, 1920×1080, 1440×900, 1280×1024
• VGA: 1920×1080, 1280×1024, 1280×720
• Multi-Screen Display: 1/4
Recording
• Resolution: 5MP, 4MP, 1080p, 720p, D1, CIF
• Record Rate: 5MP @6fps, 4MP @7fps, 1080p @15fps
• Bit Rate: Main Stream: 128Kbps~6144Kbps
• Sub Stream: 16Kbps~1024Kbps
• Record Mode: Manual, Event, Timer
• Record Interval: Post-record: 30 ~ 60 sec
Video Detection and Alarm
• Trigger Events: Recording, Buzzer, Push message, Popup Message
• Video Detection: Motion Detection, Video Loss, Camera Tamper
• Alarm in/out: N/A
Playback and Backup
• Playback: 4/1
• Search Mode: Time/Date, Alarm, Picture Grid, Event
• Playback Function: Play, Pause, Stop, Next Frame, Fast play, Slow Play, Layout, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB HDD
Network
• Interface: 1 RJ-45 port (10/100Mbps)
• Network Function: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
• Max. User  Acces:s: Access 4 Users
• Smart Phone: iPhone, iPad, Android
Storage
• Internal HDD: 1 SATA Ports, up to 8TB for each HDD
• eSATA: N/A
Interface
• USB Ports: 2× USB2.0
• RS232: N/A
• RS485: N/A
General
• Power Supply: DC12V 2A
• Power Consumption: Max. 5W (without  HDD)
• Operating Temperature: -10 °C ~ 50 °C
• Storage Conditions: Less than 90% RH
• Certifications: CE/FCC
• Dimensions (L × W × H): 255 × 244 × 44mm
• Net Weight: 900g
