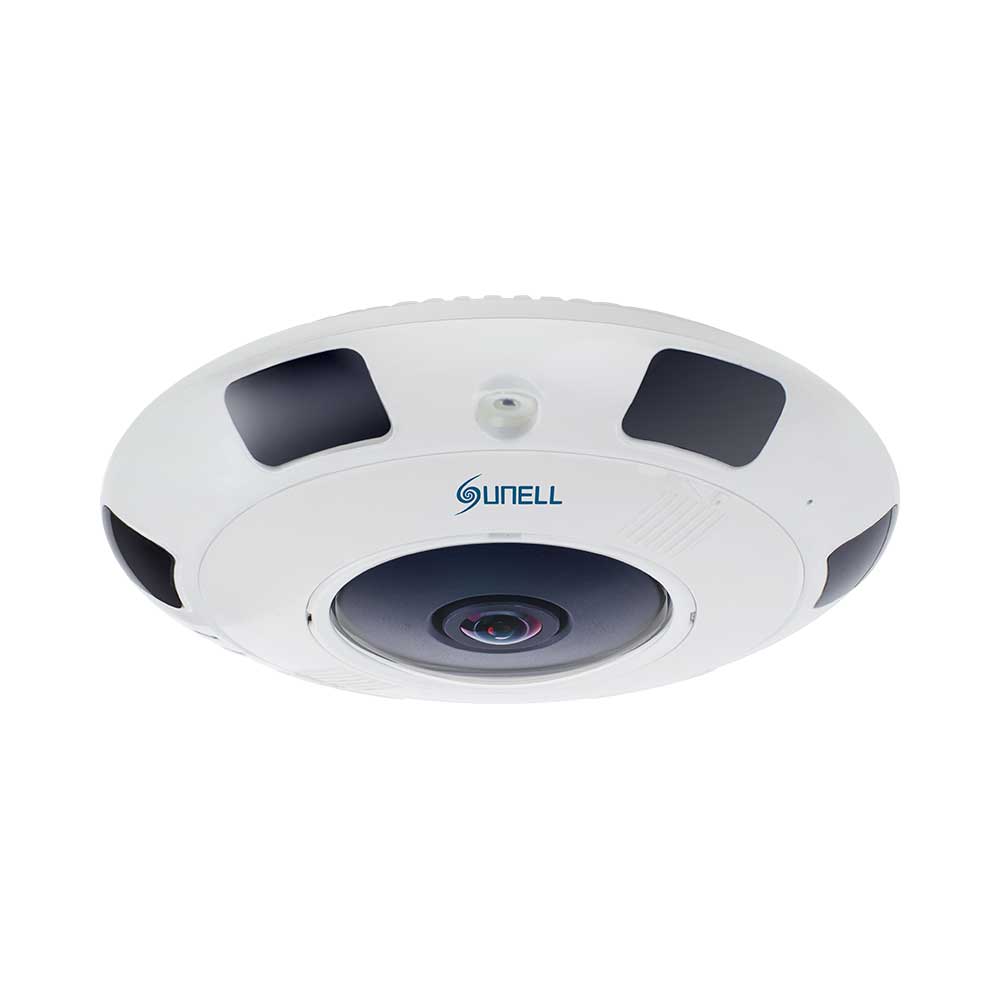

SUNELL IP FISHEYE 12MP IK10 4000X3000 POE

FEATURES
• 1/1.7″ Progressive Scan CMOS
• 20fps@12MP(4000*3000)
• Triple Streams
• Unique De-warping Image
• Support Camera & Software De-warping
• Low bitrate ,Excellent low light performance
• dWDR,3D DNR
• ROI, Defog, HLC, Corridor mode, DIS
• IP67

SPECIFICATIONS

Camera
Image Sensor1/1.7″ Progressive Scan CMOS
Effective Pixels4000(H)×3000 (V)
Electronic Shutter1/5-1/20,000s
Min. illuminationColor:0.009Lux@(F1.2,AGC ON)
B/W:0Lux@(IR LED ON)
S/N Ratio  55dB
Day/NightICR
Wide Dynamic RangeDWDR
IR RangeUp to 15m
IR On/Off ControlAuto/ Manual
IR LEDs6pcs
Pan/Tilt/Rotation  RangeN/A
Lens
Lens Type Fixed
IrisFixed Iris
Focal Length1.83mm
F NumberF2.4
Angle of View180°×180°
Focus ControlFixed
Video
CompressionH.265, H.264, MJPEG
Max. Resolution12MP(4000×3000)
Streaming Capability3 Streams
Stream /Stream1: 4000×3000 @20fps, 4096×2160/3840×2160/ 1920×1080/1280×720 @25/30fps
Frame RateStream2: D1/VGA/640×360/CIF @25/30fps
Stream3: VGA/CIF/QVGA @25/30fps
Bit Rate ControlCBR/VBR
Bit RateStream1: 500kbps~16000kbps
Stream2: 100kbps~6000kbps
Stream3: 100kbps~3000kbps
Image EnhancementHLC / BLC / Anti-shake / Defog /  DWDR
White BalanceSupport
Gain ControlAuto/Manual
Noise Reduction2D/3D DNR
Smart IRSupport
MirrorSupport
Aisle ModeSupport
Region of InterestSupport
Motion DetectionSupport
Privacy MaskingSupport
Audio
CompressionG.711 ,RAW_PCM
Bit Rate64kbps (G.711), 128kps (RAW_PCM)
Network
Protocols:IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
InteroperabilityONVIF, SDK, CGI
Streaming MethodUnicast
Max. User Access10 Users
Web Viewer
