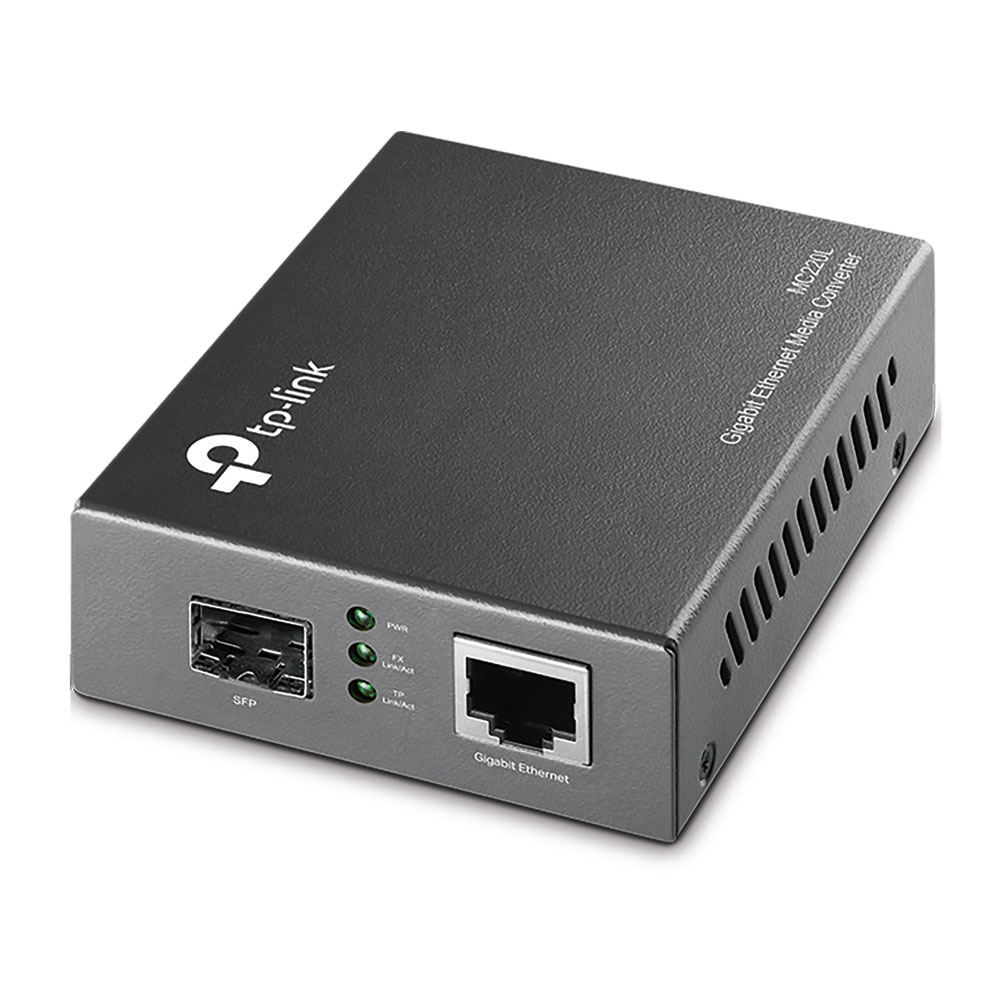

FEATURES
• Gigabit Ethernet Connectivity – 10/100/1000Mbps Auto-Negotiation RJ45 port with Auto-MDI/MDIX support
• Auto-Negotiation Support – Automatically selects Half-Duplex or Full-Duplex transfer mode for optimal performance
• IEEE Standards Compliance – Fully compliant with IEEE 802.3ab and IEEE 802.3z standards
• Hot-Swappable SFP Port – FX port supports hot-swappable SFP modules for flexible fibre deployment
• Flexible Fibre Distance – Maximum transmission distance depends on the installed SFP module
SPECIFICATIONS
STANDARDS AND PROTOCOLS
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
BASIC FUNCTION
• Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode
• Maximum Transmission Distance Depends on the Inserted SFP Module
PORTS
• 1× 1000M SFP Port
• 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX)
WAVE LENGTH
• Depends on the Used SFP Module
NETWORK MEDIA 1000BASE-X
• Multi-mode / Single-mode SFP Module
NETWORK MEDIA 1000BASE-T
• UTP CAT5, 5e Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)
LED INDICATORS
• PWR
• Link/Act
DIMENSIONS (W × D × H)
• 94.5 × 73 × 27mm
POWER SUPPLY
• External Power Adapter
MAX. POWER CONSUMPTION
• 1.7W
SAFETY AND EMISSION
• FCC
• CE
• RoHS
