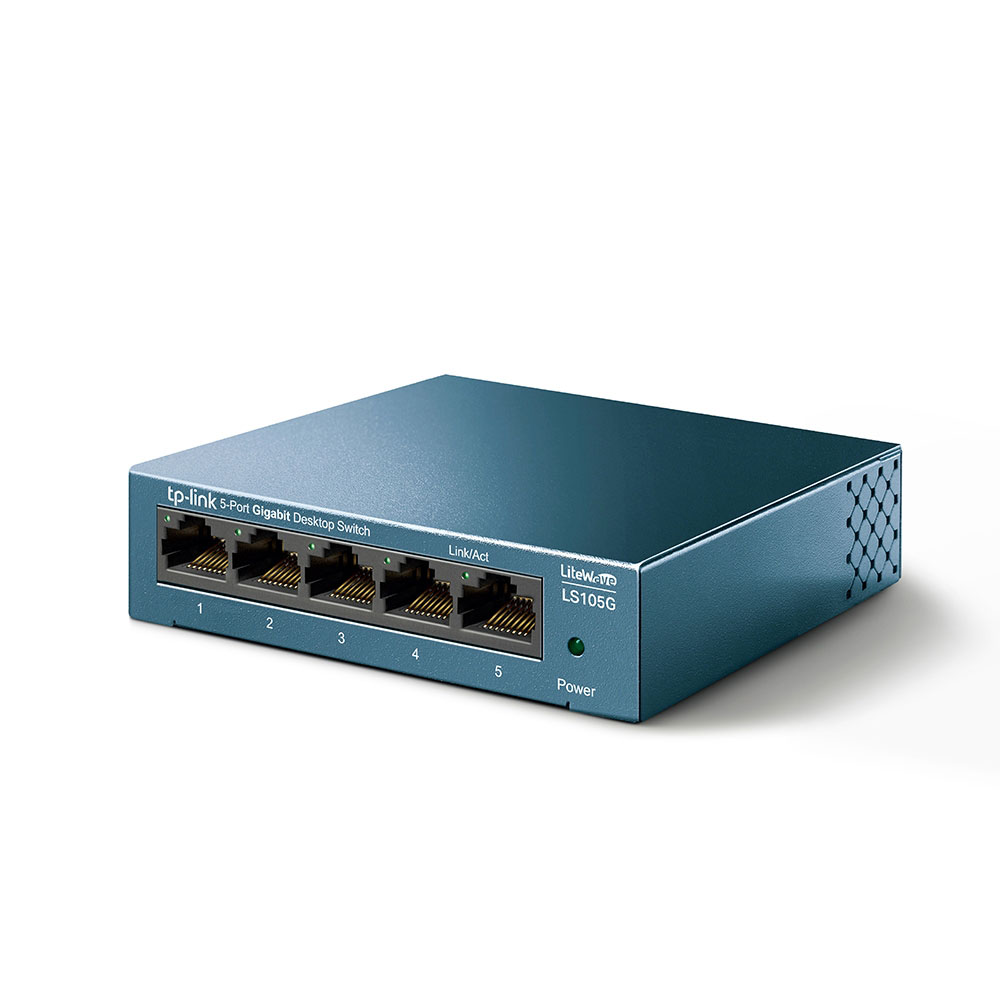

FEATURES
• 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS function
• Plug and play, no configuration needed
SPECIFICATIONS
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
• Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
• LED Indicator: System Power, Link/Act indicators per port built into each RJ-45 port
• Dimensions ( W x D x H ): 99.8 x 98 x 25mm
• Max Power Consumption: 2.776W (220V/50Hz)
• Max Heat Dissipation: 9.466 BTU/h
PERFORMANCE
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1 Mb
• Jumbo Frame: 16 KB
SOFTWARE FEATURES
• Advanced Features: Green Technology, 802.3X Flow Control, 802.1P/DSCP QoS
• Transfer Method: Store and Forward
OTHERS
• Certification: CE, FCC, RoHS
