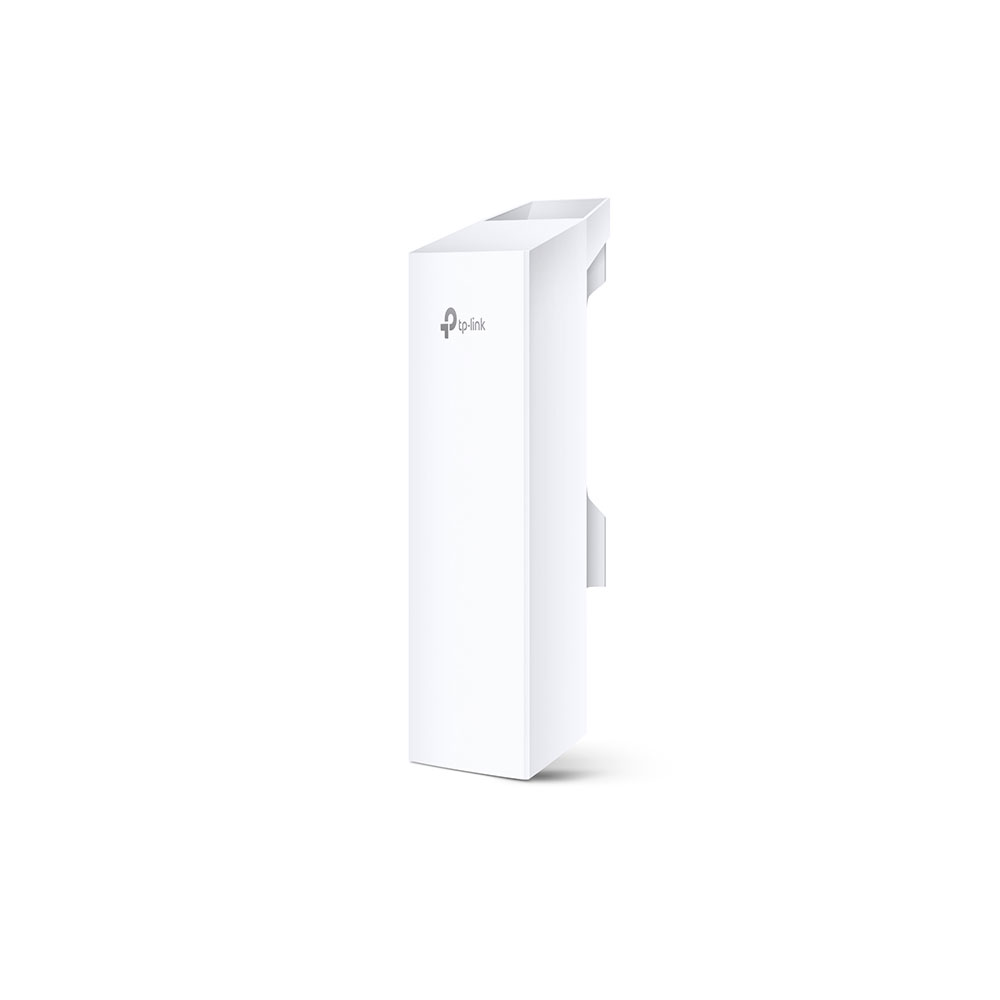

FEATURES
• Built-in 13dBi 2×2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 23dBm/200mw
• System-level optimizations for more than 15km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
SPECIFICATIONS
HARDWARE FEATURES
• Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface: 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 Grounding Terminal, 1 Reset Button
• Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
• Voltage range: 16-27VDC
• Power Consumption: 10.5 Watts Max
• Dimensions ( W x D x H ): 224 x 79 x 60 mm
• Antenna Type: Built-in 13dBi 2×2 Dual-polarized Directional Antenna
• Beam Width: 45° (H-Plane) / 30° (E-Plane)
• Note: For more details, please refer to datasheet
• Protection: 15KV ESD Protection
• 6KV Lightning Protection
• Enclosure: Outdoor ASA stabilized plastic material
• IPX5 waterproof Certification
WIRELESS FEATURES
• Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)
• Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds: Up to 300Mbps (40MHz,Dynamic)
– Up to 144.4Mbps (20MHz,Dynamic)
– Up to 72.2Mbps (10MHz,Dynamic)
– Up to 36.1Mbps (5MHz,Dynamic)
• Frequency: 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
• Transmission Power: 23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
• Wireless Configurations: Pharos MAXtream TDMA Technology
• 802.11a/n Modes
• Selectable Channel Width: 5/10/20/40MHz
• Automatic Channel Selection
• Transmission Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable/Disable
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
• SSID Broadcast Enable/Disable
• Multi-SSID with VLAN Tagging (AP mode only)
• Distance/ACK Timeout Setting
• Wireless MAC Address Filter
• Wireless Advanced:
– Beacon Interval/RTS Threshold/Fragmentation
– Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Management Discovery and Remote Management via Pharos Control application
• HTTP/HTTPS Web-based management
• System Log
• SNMP Agent (v2c)
• Ping Watch Dog
• Dynamic DDNS
• SSH Server
• System Tools: Wireless Signal Quality Indicators:
• Signal Strength/Noise/Transmit CCQ/CPU/Memory
• Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute
• System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications
• Hardware watch dog
POE ADAPTER FEATURES
• Dimensions (W x D x H): 110*57*33.5mm
• Interfaces: 1 AC Jack with Earth Ground
– 1 10/100Mbps Shielded Ethernet Port (Power + Data)
– 1 10/100Mbps Shielded Ethernet Port (Data)
• Button: Remote Reset Button
• Power Status LEDs: Green
• Input: 100-240VAC, 50/60Hz
• Input Voltage: 100VA~240VAC @ 50Hz~60Hz
• Input Current: 0.4 Max @ 100VAC
• Output: 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• Output Voltage: 24VDC (+4,5pins; -7,8pins)
• Efficiency: >80%
• Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux
OTHERS
• Certification: CE, FCC, RoHS, IPX5
