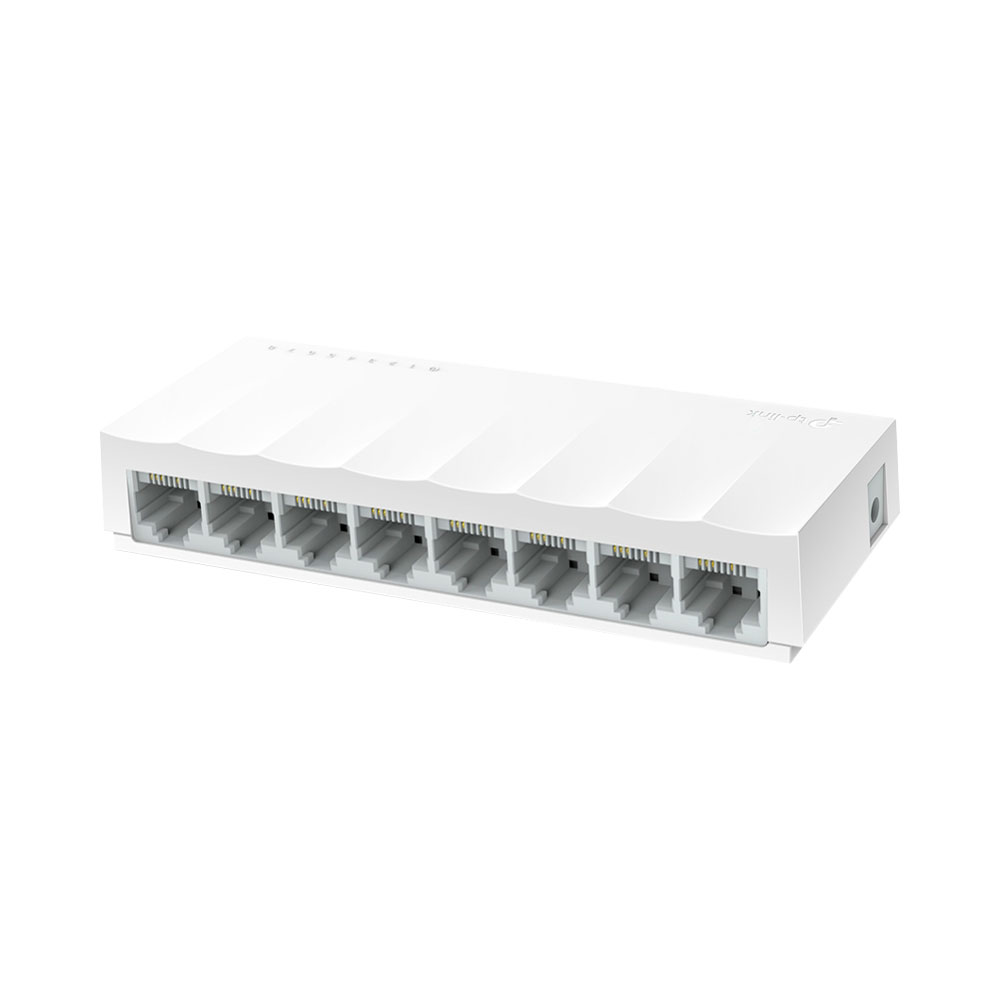

FEATURES
• 8-Port Fast Ethernet Connectivity – 8× 10/100Mbps Auto-Negotiation RJ45 ports with Auto-MDI/MDIX support
• Energy-Efficient Ethernet – Green Ethernet technology automatically reduces power consumption
• Reliable Data Transmission – IEEE 802.3X flow control ensures stable and smooth network performance
• Compact Desktop Design – Durable plastic housing designed for simple desktop placement
• Plug-and-Play – No configuration required, simply connect and start networking instantly
• Silent Operation – Fanless design ensures quiet and reliable operation for home or office use
SPECIFICATIONS
HARDWARE FEATURES
• Interface: 8× 10/100Mbps Auto-Negotiation RJ45 Ports (Auto-MDI/MDIX)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output 5VDC 0.6A)
• Dimensions (W × D × H): 124.6 × 48.7 × 22.8mm
• Max. Power Consumption: 2.64W
• Max. Heat Dissipation: 9.002 Btu/hr
ADVANCED FEATURES
• Green Ethernet Technology
• IEEE 802.3X Flow Control
• Back Pressure
TRANSMISSION METHOD
• Store and Forward
CERTIFICATION
• CE
• RoHS
ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)
