FEATURES

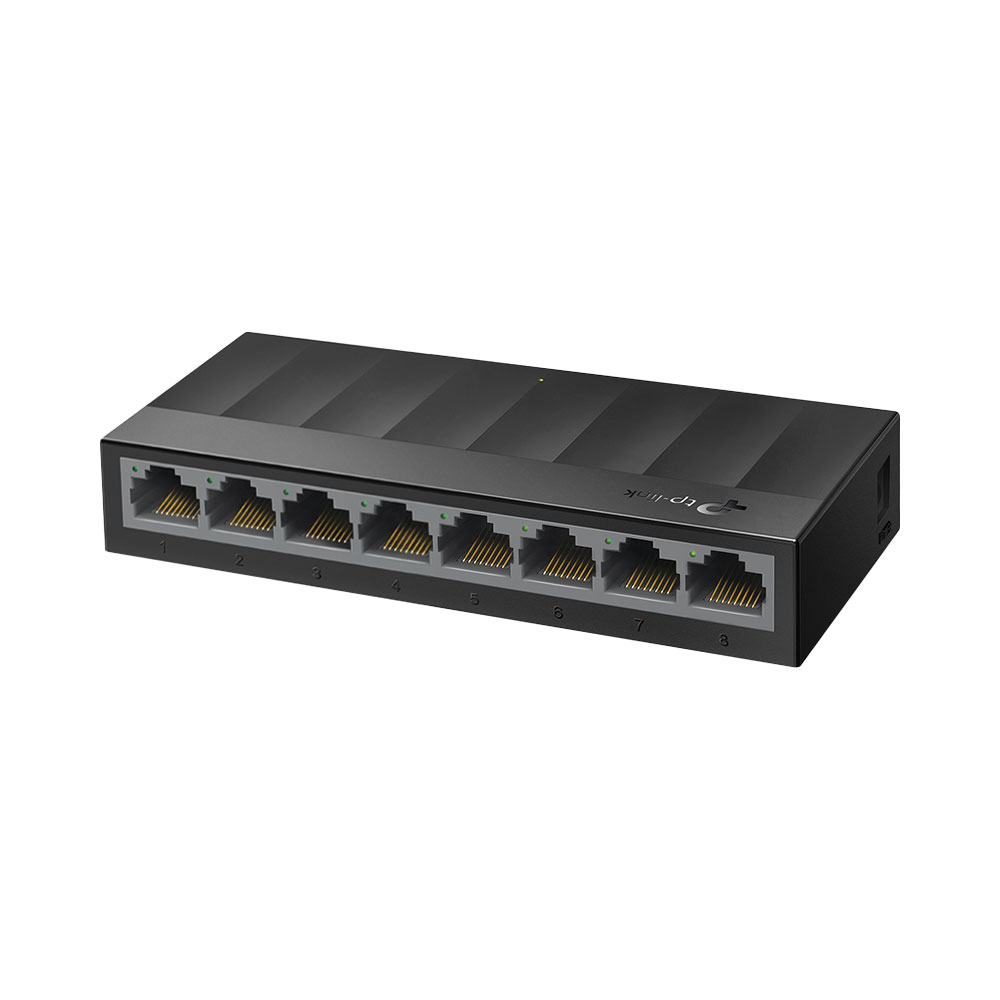

• 8-Port Gigabit Ethernet Connectivity – 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports with Auto-MDI/MDIX support
• Energy-Efficient Ethernet – Green Ethernet technology automatically reduces power consumption
• Reliable Data Transmission – IEEE 802.3X flow control ensures stable and smooth network performance
• Compact Desktop Design – Durable plastic housing designed for simple desktop placement
• Plug-and-Play – No configuration required, simply connect and start networking instantly
• Silent Operation – Fanless design ensures quiet and reliable operation for home or office use
SPECIFICATIONS
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i / 802.3u / 802.3ab / 802.3x
• Interface: 8× 10/100/1000Mbps Auto-Negotiation RJ45 Ports (Auto-MDI/MDIX)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 9VDC 0.6A)
• Dimensions (W × D × H): 127 × 66.5 × 23mm
• Max. Power Consumption: 3.9W
• Max. Heat Dissipation: 13.299 BTU/h
PERFORMANCE
• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mb
• Jumbo Frame: 16KB
ADVANCED FEATURES
• Green Ethernet Technology
• IEEE 802.3X Flow Control
• Back Pressure
TRANSFER METHOD
• Store and Forward
CERTIFICATION
• CE
• FCC
• RoHS
