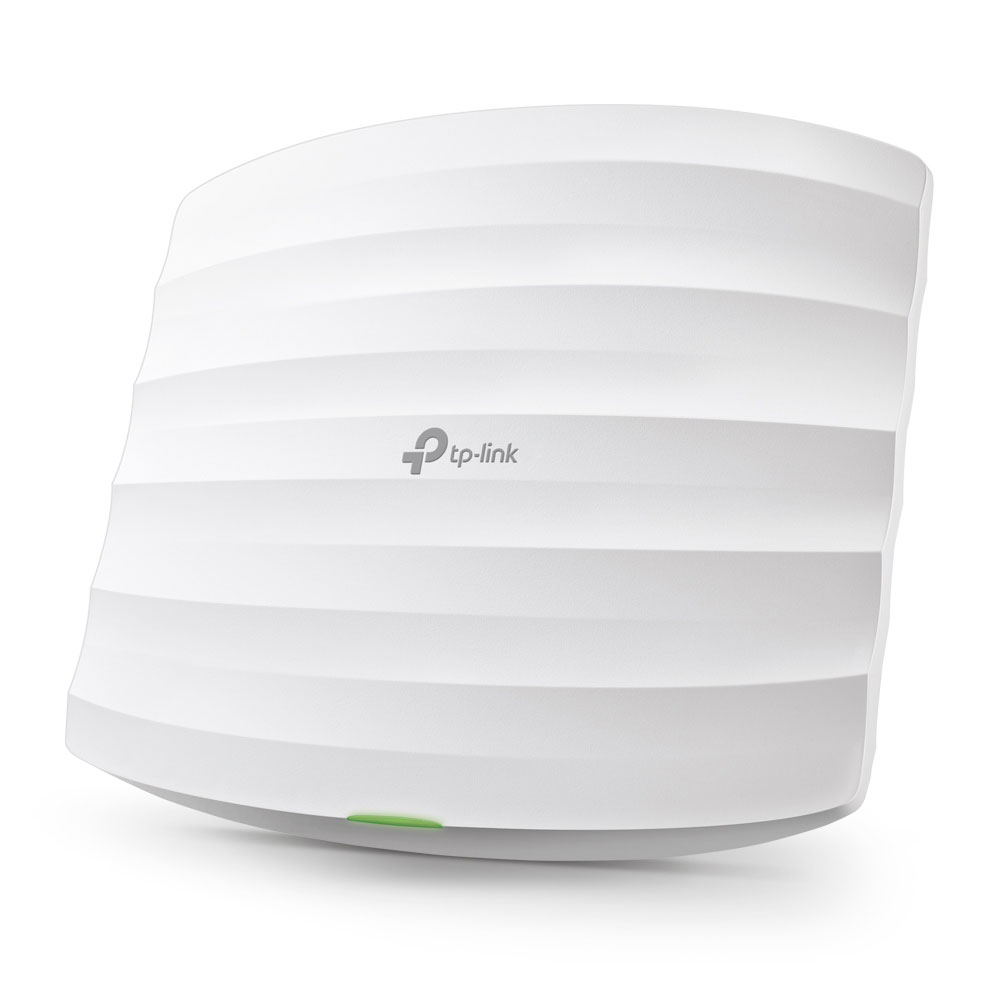

FEATURES
• AC1350 Dual-Band Wi-Fi – 450Mbps on 2.4GHz plus 867Mbps on 5.0GHz delivering combined speeds up to 1317Mbps
• Seamless Roaming – Maintains uninterrupted video streaming and voice calls while users move between access points
• Free Cloud Centralised Management – Control easily via Omada Cloud and the Omada App
• Flexible PoE Deployment – Supports 802.3af and Passive PoE for effortless and adaptable installation
• Secure Guest Network – Multiple authentication options including SMS, Facebook Wi-Fi and Voucher with robust wireless protection
• Smart Band Steering – Automatically shifts dual-band devices to the wider 5.0GHz band for faster performance
• MU-MIMO Technology – Simultaneously communicates with multiple devices to increase efficiency
• Beamforming Optimisation – Focuses signal strength toward connected devices for stable coverage
• Scheduled Operation – Configure automatic reboot and Wi-Fi on/off scheduling for improved network control
SPECIFICATIONS
HARDWARE FEATURES
INTERFACE
• 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3af PoE and Passive PoE)
PHYSICAL SECURITY LOCK
• Yes
BUTTON
• Reset
POWER SUPPLY
• 802.3af/at PoE
• 24V Passive PoE (+4,5pins; -7,8pins)
• PoE Adapter Included
POWER CONSUMPTION
• 10.5W
DIMENSIONS (W × D × H)
• 205.5 × 181.5 × 37.1mm
ANTENNA
• 3× Internal Omni Antennas
• 2.4GHz: 4dBi
• 5.0GHz: 5dBi
MOUNTING
• Ceiling / Wall Mounting Kits Included
WIRELESS FEATURES
WIRELESS STANDARDS
• IEEE 802.11ac/n/g/b/a
FREQUENCY
• 2.4GHz and 5.0GHz
SIGNAL RATE
• 5.0GHz: up to 867Mbps
• 2.4GHz: up to 450Mbps
WIRELESS FUNCTIONS
• Multiple SSIDs (up to 16× SSIDs, 8× per Band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control
• QoS (WMM)
• Seamless Roaming
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics (SSID/AP/Client Based)
WIRELESS SECURITY
• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
TRANSMISSION POWER
CE
• ≤20dBm (2.4GHz, EIRP)
• ≤23dBm (5.0GHz, EIRP)
FCC
• ≤24dBm (2.4GHz)
• ≤22dBm (5.0GHz)
MANAGEMENT
• Omada Cloud Access
• Omada App
• Omada Cloud Controller
• Omada Controller Software
• Email Alerts
• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c
• System Logging (Local/Remote Syslog)
• SSH
• Web-Based Management (HTTP/HTTPS)
• L3 Management
• Multi-Site Management
• Management VLAN
CERTIFICATION
• CE
• FCC
• RoHS
SYSTEM REQUIREMENTS
• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
• Linux
