FEATURES
• 802.11ac Wave 2 Technology – Enables multiple users to access the internet simultaneously with improved efficiency
• Designed For Multi-Room Environments – Ideal for hotels, offices and dormitories with individually separated rooms

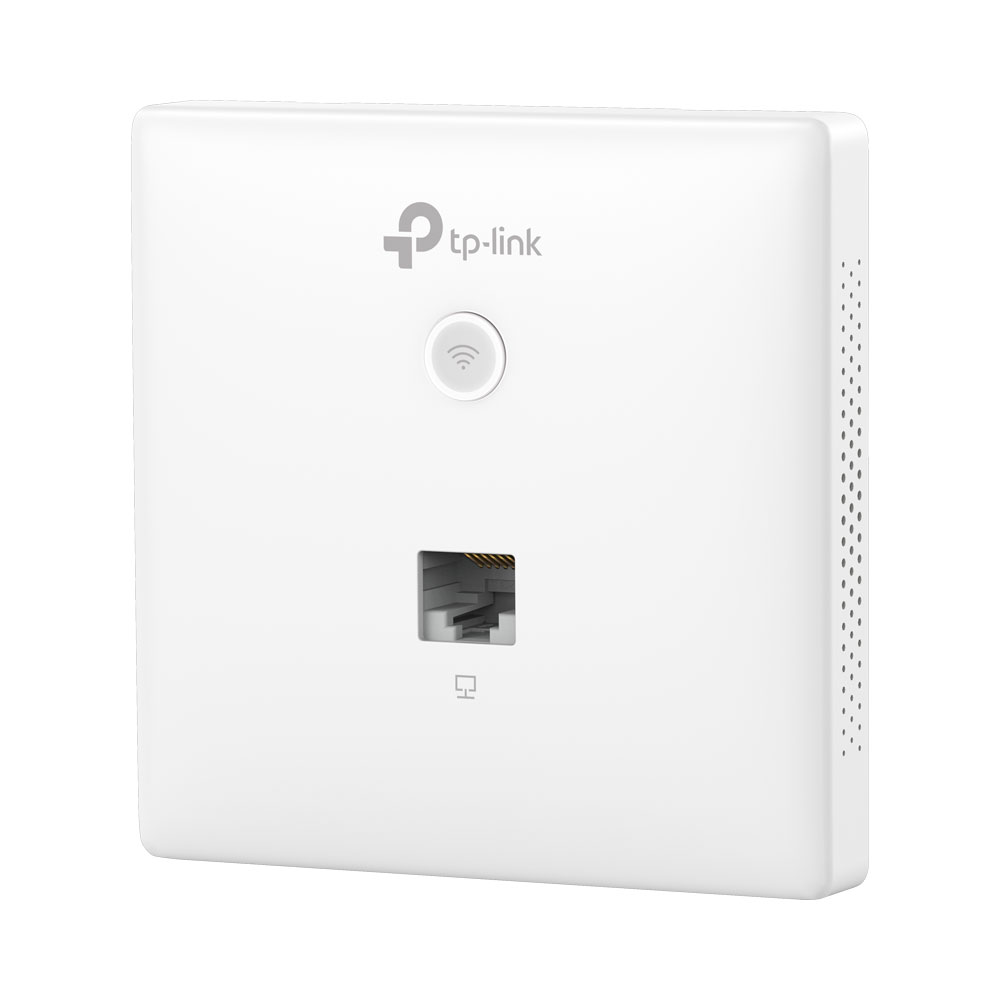

• Discreet Wall-Plate Design – Matches the size and shape of a light switch or power outlet for seamless integration
• Centralised Cloud Management – Access and manage your network anytime, anywhere
• Omada App Control – Simple and convenient network management from your mobile device
SPECIFICATIONS
HARDWARE FEATURES
• Interface: 1× Gigabit Uplink Port, 1× 10/100/1000Mbps Downlink Port
• Button: LED/Wi-Fi Button, Reset
• Power Supply: 802.3af/802.3at PoE
• Power Consumption: 7W
• Dimensions: 86.8 × 86.8 × 30.2mm
• Antennas: 2× Dual-Band Internal Antennas
– 2.4GHz: 2× 4dBi
– 5.0GHz: 2× 3.6dBi
• Mounting: Wall-Plate Mounting
• Hardware Watchdog: Yes
WIRELESS FEATURES
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency: 2.4GHz and 5.0GHz
• Signal Rate:
– 5.0GHz: up to 867Mbps
– 2.4GHz: up to 300Mbps
• SSIDs: Up to 16× SSIDs (8× per Band)
• MU-MIMO: Yes
• Band Steering: Yes
• Beamforming: Yes
• QoS (WMM): Yes
• Load Balance: Yes
• Rate Limit: Yes
• Wireless Schedule and Reboot Schedule: Yes
• Wireless Statistics: Based on SSID/AP/Client
WIRELESS SECURITY
• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN Port-Based VLAN
• Rogue AP Detection
• 802.1X Support
• Encryption: 64/128/152-bit WEP, WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK
TRANSMISSION POWER
• CE:
– ≤20dBm (2.4GHz, EIRP)
– ≤23dBm (5.0GHz, EIRP)
MANAGEMENT
• Omada Cloud Access: Yes
• Omada App: Yes
• Omada Cloud Controller: Yes
• Omada Controller Software: Yes
• Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Email Alerts: Yes
• LED On/Off Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-Based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-Site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (via Omada Cloud-Based Controller)
CERTIFICATION
• CE
• RoHS
