FEATURES
• Gigabit Wi-Fi for 8K Streaming
• Fully Featured Wi-Fi 6
• Connect 200+ Devices
• Extensive Coverage
• HomeShield
• More Vents, Less Heat
• USB Sharing
• Easy Setup
WIRELESS
• Standards: Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
• Wi-Fi Speeds: AX5400
• 5 GHz: 4804 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)
• 3 Bedroom Houses
• Wi-Fi Range
• 6× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
• Concentrates wireless signal strength towards clients to expand Wi-Fi range
High-Power FEM
• Improves transmission power to strengthen signal coverage
4T4R
• Multiple streams in the same band strengthen the fault tolerance in transmission
Wi-Fi Capacity: High
Dual-Band
• Allocate devices to different bands for optimal performance
4×4 MU-MIMO
• Simultaneously communicates with multiple MU-MIMO clients
OFDMA
• Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
• Improves network efficiency by limiting excessive occupation
DFS
• Access an extra band to reduce congestion
6 Streams
• Connect your devices to more bandwidth
• Working Modes: Router Mode, Access Point Mode
HARDWARE
• Processor: 1.5 GHz Triple-Core CPU
• Ethernet Ports: 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
• Static Link Aggregation (LAG) available with 2× LAN ports
• USB Support1× USB 3.0 Port
• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions:
• Apple Time Machine
• FTP Server
• Media Server
• Samba Server
• Buttons: Wi-Fi On/Off Button
• Power On/Off Button
• LED On/Off Button
• WPS Button
• Reset Button
• Power: 12 V ⎓ 2.5 A
SECURITY
• Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
• VPN Server: OpenVPN
• PPTP
SOFTWARE
• Protocols: IPv4, IPv6
• OneMesh: OneMesh Supported
Without replacing your existing devices or buying a whole new Wi-Fi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls
• HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: Auto Firmware Upgrade
• TP-Link ID
• DDNS
• NAT Forwarding: Port Forwarding
• Port Triggering
• DMZ
• UPnP
• Virtual Server
• IPTV: IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
• DHCP: Address Reservation
• DHCP Client List
• Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management: Tether App
PHYSICAL
• Dimensions (W×D×H): 272.5 × 147.2 × 49.2 mm

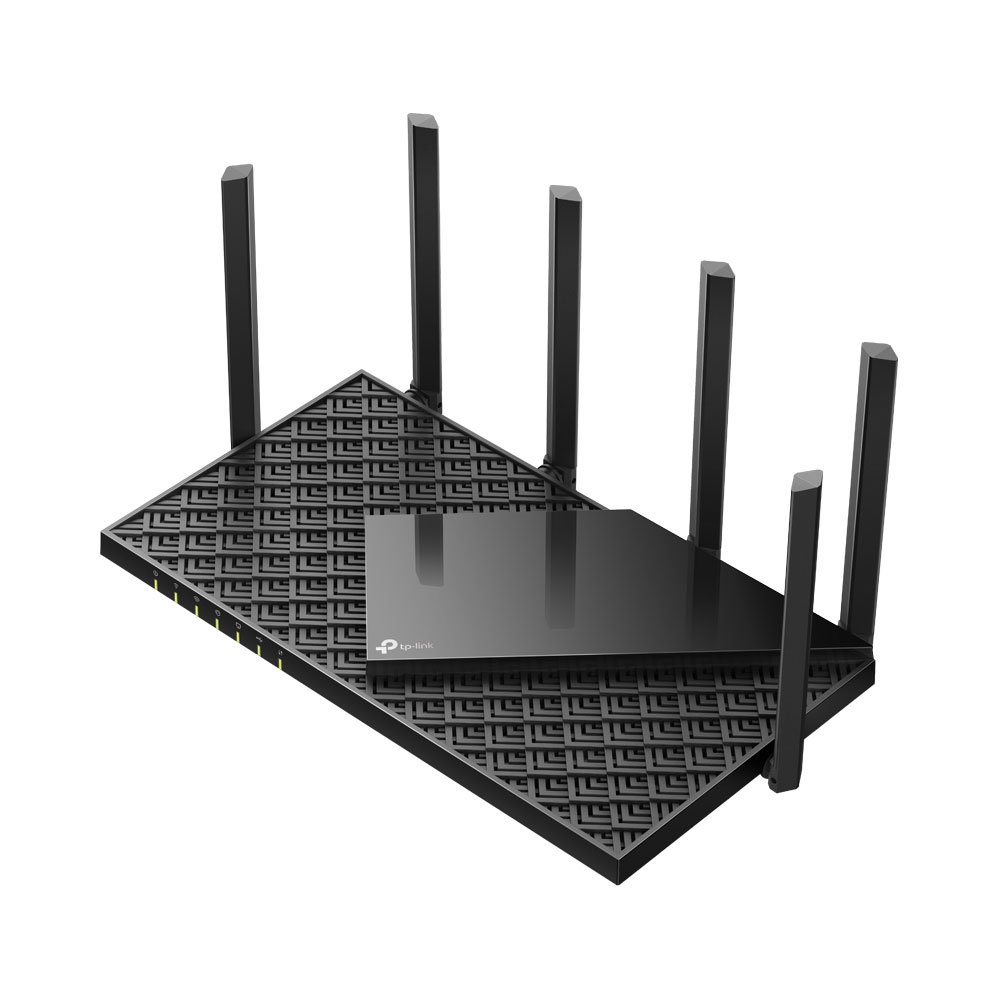

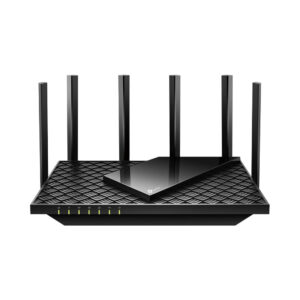

• Package Contents: Wi-Fi Router Archer AX73
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
OTHER
• System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
• Certifications:FCC, CE, RoHS
• Environment: Operating Temperature: 0°C~40°C (32℉ ~104℉)
• Storage Temperature: -40°C~70°C (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
TEST DATA
• Wi-Fi Transmission PowerCE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
• FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
• Wi-Fi Reception Sensitivity 2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
• 5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
