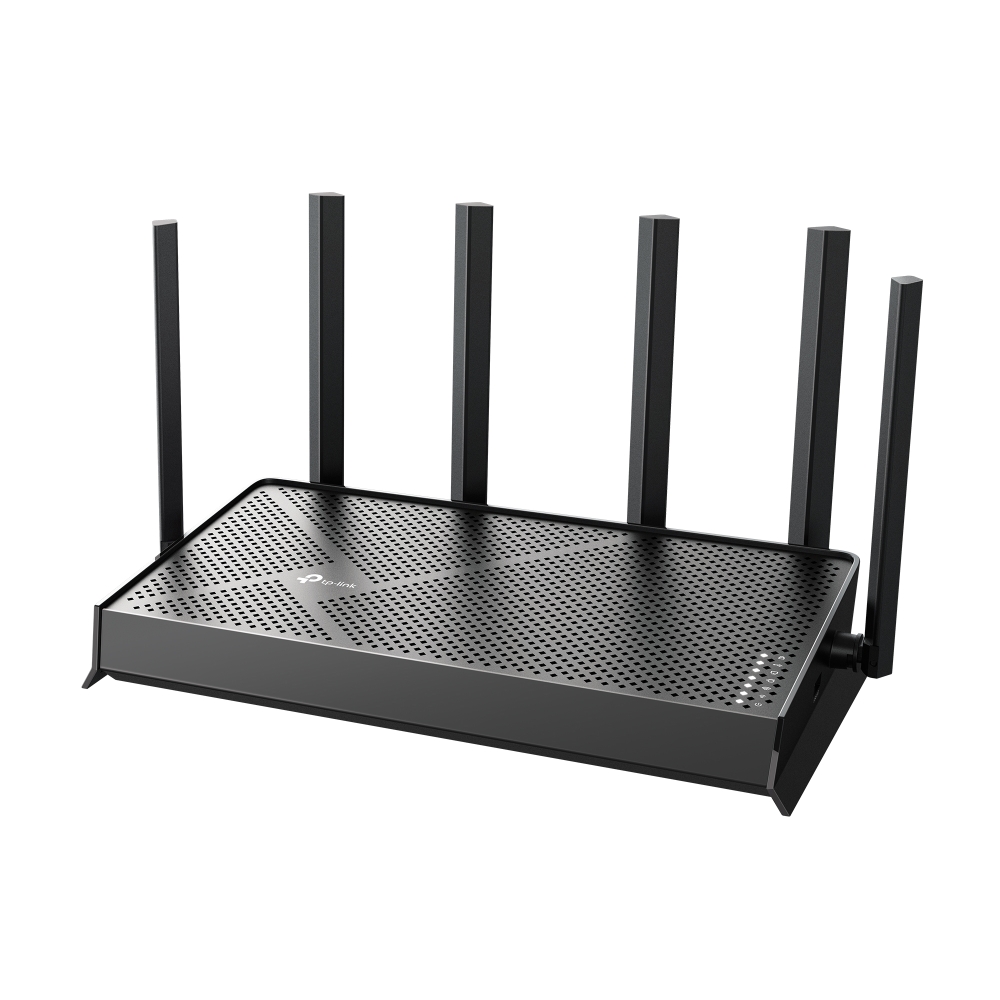

FEATURES
• 6.5Gbps Dual-Band Wi-Fi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• Multi-Link Operation (MLO): Transmits data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviours.
• 2.5G Wired Connection: 1× 2.5Gbps WAN port, 1× 2.5Gbps LAN port and 3× 1Gbps LAN ports offer high-speed data transmissions.
• Maximised Coverage: 6× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.
• Easy Setup and Use: Network management has never been easier with the Tether app.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
• Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.
SPECIFICATIONS
WIRELESS
• Wi-Fi Speeds: BE6500
• 5GHz: 5764 Mbps
• 2.4GHz: 688 Mbps
• Wi-Fi Range: 3 Bedroom Houses
• 6× External Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming: Concentrates wireless signal strength towards clients to expand Wi-Fi range
• High: Dual-Band (Allocate devices to different bands for optimal performance)
• MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
• OFDMA: Simultaneously communicates with multiple clients
• Airtime Fairness: Improves network efficiency by limiting excessive occupation
• DFS: Access an extra band to reduce congestion
• 4 Streams: Connect your devices to more bandwidth
• Advanced Features: Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network
• Wireless Mode: Router Mode, Access Point Mode
SECURITY
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
• Guest Network: 1× 5GHz Guest Network, 1× 2.4GHz Guest Network
• VPN Server: OpenVPN Server, PPTP VPN Server, L2TP VPN Server, WireGuard VPN Server
• VPN Client: Open VPN Client, PPTP VPN Client, L2TP VPN Client, WireGuard VPN Client
• Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
HARDWARE
• Ethernet Ports: 1× 2.5Gbps WAN, 1× 2.5Gbps LAN, 3× 1Gbps LAN
• USB Support: 1× USB3.0
• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
• Supported Functions: FTP Server, Media Server, Samba Server
• Buttons: Power Button, Wi-Fi/LED Button, WPS Button, Reset Button
• Power: 12V ⎓ 2.5A
SOFTWARE
• Protocol: IPv4, IPv6
• Service Kit: HomeShield
• EasyMesh: Compatible with EasyMesh
• Parental Controls: HomeShield Parental Controls
• Custom Profiles: Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online, Time Ranking, Pause the Internet, Weekly and Monthly Reports
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management Features: Tether App, Webpage
OTHER
• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
• Certifications: CE, FCC, RoHS
• Environment: Operating Temperature: 0°C~40°C, Operating Humidity: 10%~90% non-condensing
