FEATURES
• 110/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• Extends fiber distance up to 15km
SPECIFICATIONS
• Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Basic Function: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode, Extends fibre distance up to 15km

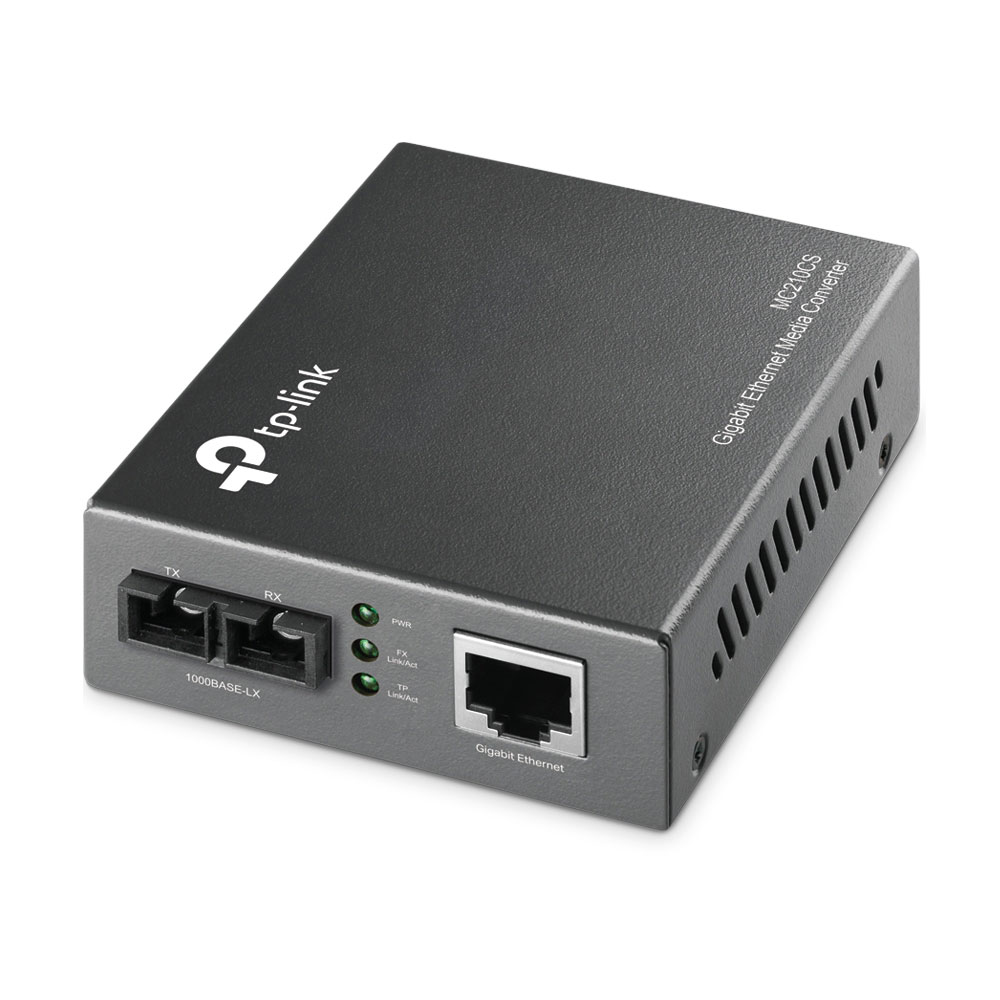

• Ports: 1 1000M SC/UPC port, 1 10/100/1000M RJ45 port (Auto MDI/MDIX)
• Wave Length: 1310nm
• Network Media 1000BASE-LS: Single-mode Fibre
• Network Media 1000BASE-T: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• LED Indicators: PWR, Link/Act
• Dimensions (W*D*H): (94.5 × 73.0 × 27.0 mm)
• Power Supply: External Power Adapter
• Max Power Consumption: 1.8W
• Safety & Emission: FCC, CE, RoHS
