Specifications

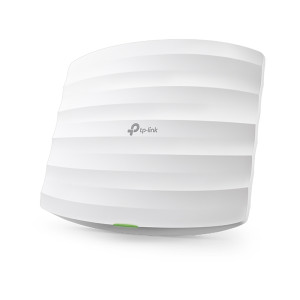

•Product Code: TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point
•Description: EAP110
•Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
•Physical Security Lock: Kensington Lock Slot
•Button: Reset
•Power Supply: 24VDC / 1A Passive PoE Supply
•Power Consumption: 7.7W
•Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
•Dimensions ( W x D x H ): 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
•Antenna Type: Internal 2* 3dBi Omni
•Mounting: Ceiling /Wall Mounting (Kits included)
•Watch Dog: Yes
•Coverage: 60㎡(650ft²)§
•Wireless Client Capacity: 100+**
•Concurrent Clients: 100+
•Wireless Standards: EEE 802.11n, IEEE 802.11g, IEEE 802.11b
•Frequency: 2.4-2.4835GHz
•Certification: CE, FCC, RoHS
Wireless Functions:
•Multiple SSIDs （Up to 8 SSIDs）
•Enable/Disable Wireless Radio
•Automatic Channel Assignment
•Transmit Power Control （Adjust Transmit Power on dBm）
•QoS(WMM)
•Rate Limit
•Reboot Schedule
•Wireless Schedule
•Wireless Statistics based on SSID/AP/Client
