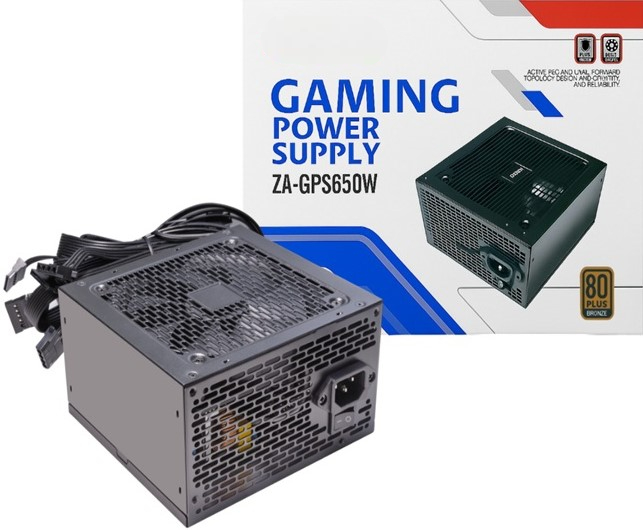

UniQue Gaming Power Supply – 650W Power Capacity, 80 PLUS Bronze Certified Efficiency, AC180-240V (6A) AC Input, +50`b0C Ambient at Full Load Operating Temperature, Connector Set 24 Pin ATX, SATA x 4, P8(4+4) x 2, IDE x 2, P8 (6+2) x 2, Dual Forward Topology For System Stability, Active PFC For Better Power Efficiency, Retail Box, 6 Months Warranty.
Product Overview
UniQue 650W power supply’s continuous 650W output on a single +12V rail (54.2A), 80 PLUS Bronze efficiency, and active PFC for stable power under load up to 50°C ambient. Equipped with essential connectors—1x 24-pin ATX (550mm), 2x 4+4-pin CPU (650mm), 2x 6+2-pin PCIe (550mm), 4x SATA (450mm), 2x IDE (450mm)—it supports modern GPUs and storage alongside your SSDs and DDR5 setups. Reliable for high-performance rigs with 90W combined +3.3V/+5V rails, 10W standby, AC 180-240V input, and robust protections, offering great value for enthusiasts.
.jpg)
Features
•Active PFC for better power efficiency
•Dual Forward Topology for system stability
•Silent fan design for low-noise operation
•Full protection: OVP / OPP / SCP
Specifications
•Product Code: GPS650W
•Description: UniQue Gaming Power Supply
•Power Output: 650W Continuous
•Efficiency: 80 PLUS Bronze Certified
•AC Input: AC180-240V (6A), 50/60Hz
•Operating Temperature: +50`b0C Ambient @ Full Load
DC Output Ratings:
•+3.3V: 14A
•+5V: 14A
•+12V: 54.2A
•+5Vsb: 2A
•-12V: 0.5A
Combined Output:
•+3.3V & +5V: 90W
•+12V: 650W
•+5Vsb: 10W
•-12V: 6W
Connector Set:
•24-Pin ATX x1 (550mm)
•SATA x4 (2x 450mm)
•P8 (4+4) x2 (1x 650mm)
•IDE x2 (1x 450mm)
•P8 (6+2) x2 (1x 550mm)
